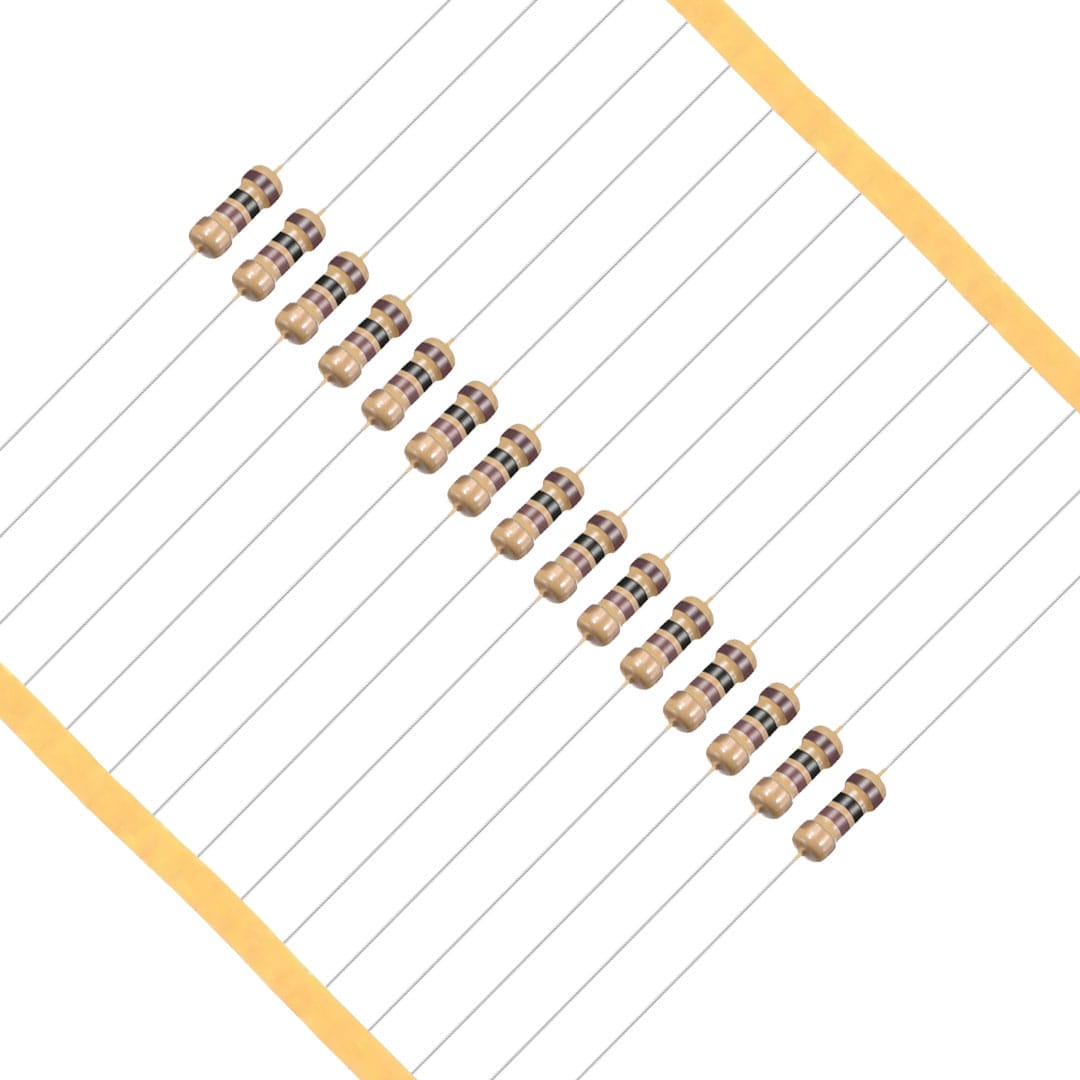

100 Ohm Carbon Film Resistor 0.25 Watt – Pack of 50 pcs
₹25.00
- Resistance Value: 100 Ohms
- Rated Power: 0.25 Watt (1/4W); Tolerance : +/- 5%
- Carbon Film Resistor – Through Hole; Flame Retardant Coating
- Stiff 24 gauge leads (0.022 inches, 0.55 mm) perfect for solderless plug-in breadboards
- Package Include 10 x 100 Ohm (Note: Color of resistor may change, so please contact us if you need specific color resistors
Description
Carbon Film Resistor
This is for through-hole applications.
- These are a fixed form type resistors. They are constructed out of a ceramic carrier with a thin pure carbon film around it, that functions as resistive material. These types of resistors are widely used in the electronic circuits.
- It has an operating temperature range of -55 °C to 155 °C.
- 100 Ohm Carbon Film resistor 1/4 W Resistance 0.25 Watt 250mW 5 percent Tolerance For DIY
- Click here to know more about resistors.
Specification
Additional information
| Weight | 40 g |
|---|---|
| Dimensions | 10 × 10 × 1.5 cm |
| Package | 50 Ohm Resistor – Pack of 50 pcs |
| Brand | Olelectronics |
| SKU | ol-p-0000005 |
| Categories | Resistors |
| Quality | High |
| Part Status | Active |
| Resistance | 50 Ohm |
| Tolerance | 5% |
| Color Code | Brown, Black, Brown, Gold |
| Type | Carbon Film |
| Voltage | 350V (Maximum) |
| Power Rating | 0.25 Watt |
| Operating Temp | -55C ? +155C |
| Maximum Current | 50mA |
| Dimensions | Body diameter (2.3mm) x Body Length (6mm) x Lead Length (28mm) x Lead Diameter (0.55mm) |
