2K ohm Metal Variable Resistor Preset – ELCON

2K ohm

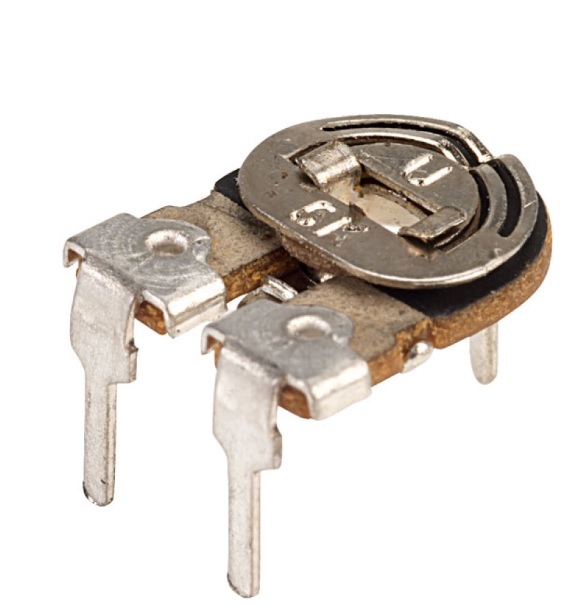

Cermet preset is a compact variable resistor and PCB mountable with 3 terminal pins. The voltage between the terminal varies as the preset is rotated.

Features/Specs:

• Part No: EP085-2K
• Manufacturer: ELCON
• Rotation Angle: 230 Deg
• Sliding Noise: 47mV
• Voltage Rating: 100V AC
• Power Rating: 0.1 W
• Tolerance: +/- 30%
• Operating Temperature Range: -55°C to +125°C
• Cermet Preset
• Stopper Strength: Greater Than 1kgf.cm
• Package: DIP
