3000KV Brushless Motor

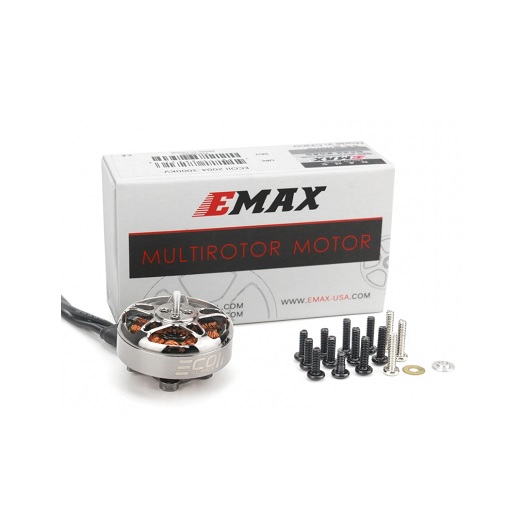

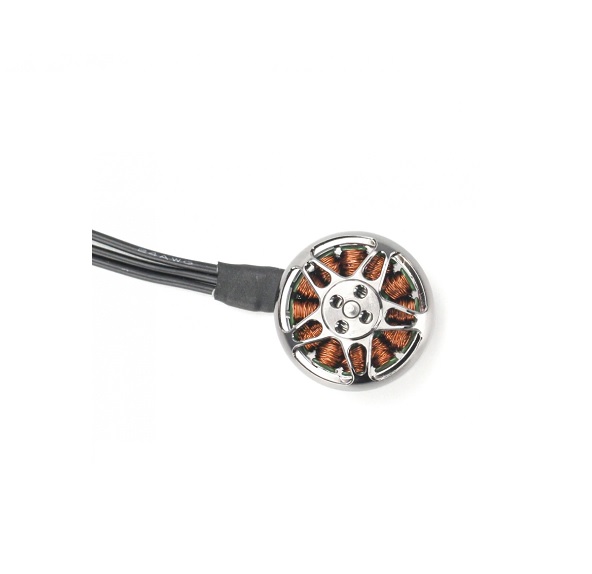

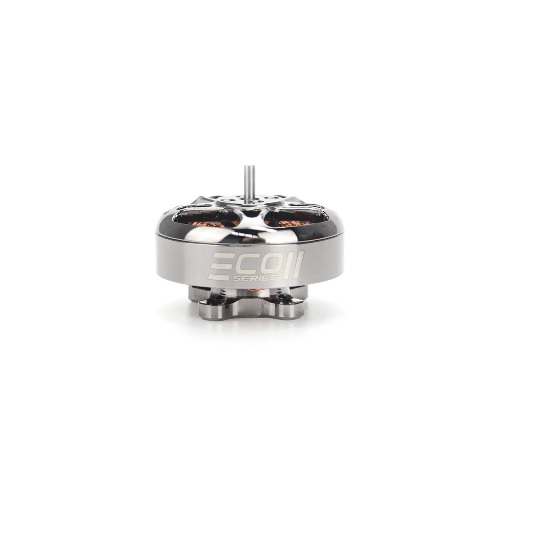

Emax ECOII-2004-3000KV Brushless Motor

Original price was: ₹1,599.00.Current price is: ₹1,180.00.

Features:

  1. NSK precision bearing
  2. Base casing : Al 7075
  3. Rotor : N52SH arc magnets
  4. Steel shaft
  5. 12*12mm hole pattern
  6. Multi-strand winding
  7. 120mm 24 AWG silicone wire

Specifications:

  1. KV: 3000
  2. Framework: 12N14P
  3. Length: 19.2mm
  4. Diameter: 24.7mm
  5. Cells: 4-6S
  6. Propeller: 4″-5″
  7. Prop adapter Shaft Thread: 1.5mm
  8. Bearing Shaft: 3mm
  9. Bolt Pattern: M2 (12x12mm)
  10. Maximum Thrust: 1170g(on4s)
  11. Peak Current (6S): 32A
SKU: OLEM0040 Category:

Description

3000KV Brushless Motor

The engineers at EMAX are always seeking ways to design the ultimate motor with brushless technology. In their efforts, they produced the ECO II Series, a new line of brushless motors further improving on the performance and durability while retaining the same affordability. Redesigned from the ground up, the ECO II boasts an all-new architecture.

With a more rounded design paired together with thicker reinforcements, maximum durability is achieved. Finished with a reflective surface, the ECO II 3000KV Brushless Motor offers a sleek modern design destined to satisfy the need for both aesthetics and durability.

In order to improve the performance from its predecessor, the ECO II 3000KV Brushless Motor utilizes N52SH arc magnets over prior N48 magnets, allowing more powerful throttle response and higher RPMs to be achieved.

More torque and thrust is generated, allowing pilots the flexibility to comfortably meet the demands of any racetrack or flight situation.

The ECO II 3000KV Brushless Motor Series marks the next evolution in affordable brushless motor technology, bringing in a new era of performance for everyone.
