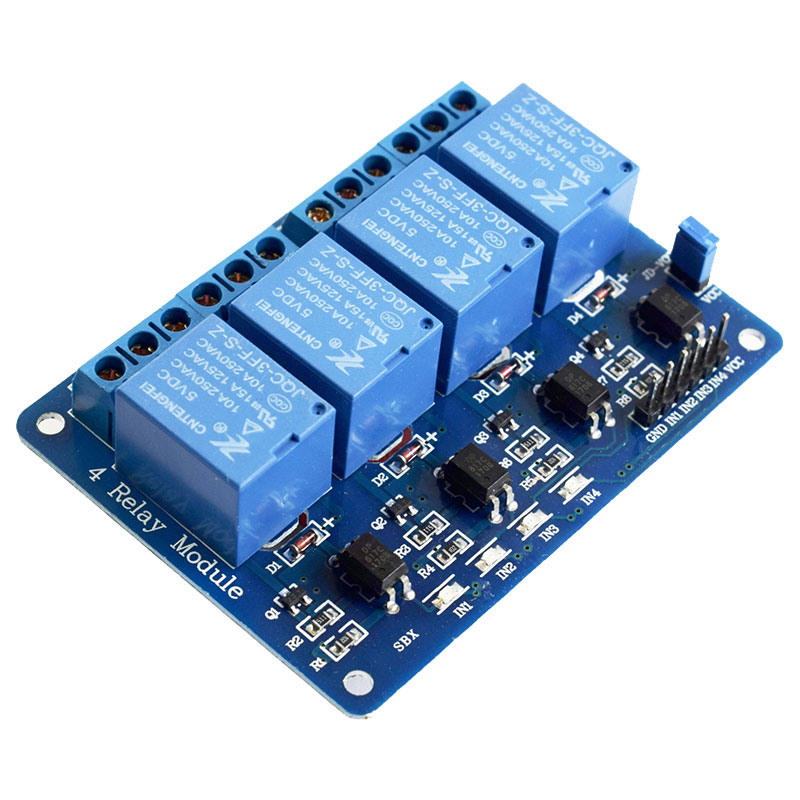

4 Channel 5V Relay Module with Optocoupler
₹160.00
- No. of Channel: 4
- Trigger Voltage: 5VDC
- Triode drive, increasing relay coil
- High impedance controller pin
- Pull-down circuit for the avoidance of malfunction
- Power supply indicator and Control indicator lamp
- Power supply and relay instructions, lit, the disconnect is off;
- The input signal, signal, common Terminal and start conducting;
Description
4 Channel 5V Relay Module
4 Channel 5V Relay Module with Optocoupler for Arduino DSP AVR PIC ARM.
Features :
- One normally closed contact and one normally open contact
- Triode drive, increasing relay coil
- High impedance controller pin
- Pull-down circuit for the avoidance of malfunction
- Power supply indicator and Control indicator lamp
- Power supply and relay instructions, lit, the disconnect is off;
- The input signal, signal, common Terminal and start conducting;
- Useful for appliance control;
- DC or AC signal, control, you can control the 220V AC load
Specification
Additional information
| Weight | 50 g |
|---|---|
| Dimensions | 7 × 5 × 1 cm |
| Trigger Voltage (VDC) | 5 |
| Trigger Current (mA) | 20 |
| Switching Voltage (VAC) | 250@10A |
| Switching Voltage (VDC) | 30@10A |
