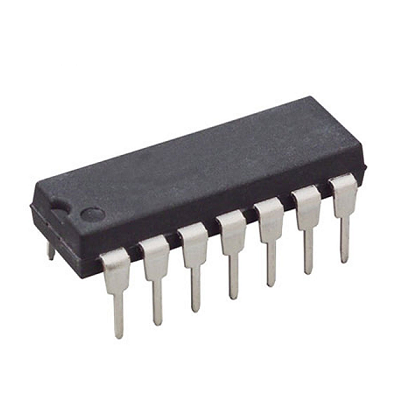

7432 Quad OR Logic Gate IC
₹12.00
- 4 OR gates in a 14-Pin DIP Package
- QUAD 2-INPUT POSITIVE OR GATE
- Outputs Directly Interface to CMOS, NMOS and TTL
- Voltage Rating: 2.0 to 6.0V
- Schmitt Trigger Action at All Inputs
Description
7432 IC
7432 IC is a logic gate IC which consist of four OR Gates. The OR gate performs logical OR operation. The OR gates come in form of DIP package ICs. Each gate has three terminal two inputs and one output. The ICs are made by CMOS, TTL technology.
Note:
- Product Images are shown for illustrative purposes only and may differ from the actual product.
- For Technical Specifications about the IC go this.
Specification
Additional information
| Weight | 5 g |
|---|---|
| Dimensions | 20 × 15 × 1 cm |
| Voltage Rating: | 2.0 to 6.0V |
