Seed Studio Grove 6 Axis Accelerometer & Gyroscope (BMI088)
₹3,595.00
Features:
- The BM1088 is designed for drones, robotics and industrial applications with challenging performance requirements.
- Wide acceleration measurement range(up to 24g)
- The accelerometer features a low TCO of 0.2 mg/K and low spectral noise of only 230 pg/sqrt(Hz) in the widest measurement range of ± 24 g
Description
Accelerometer & Gyroscope

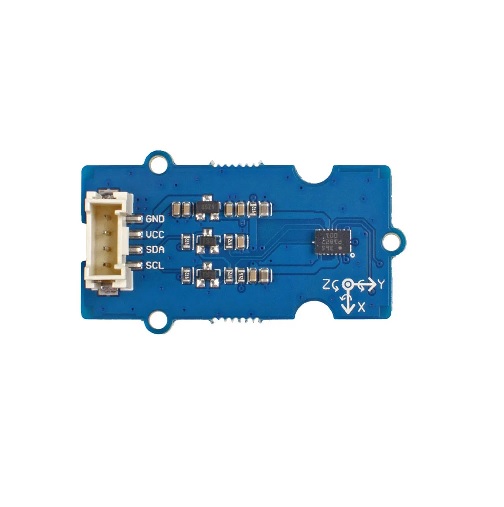

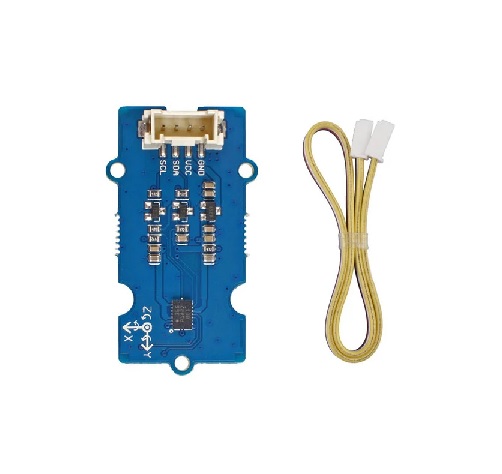

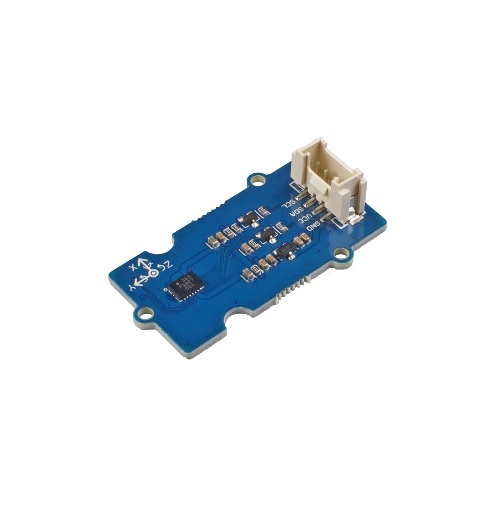

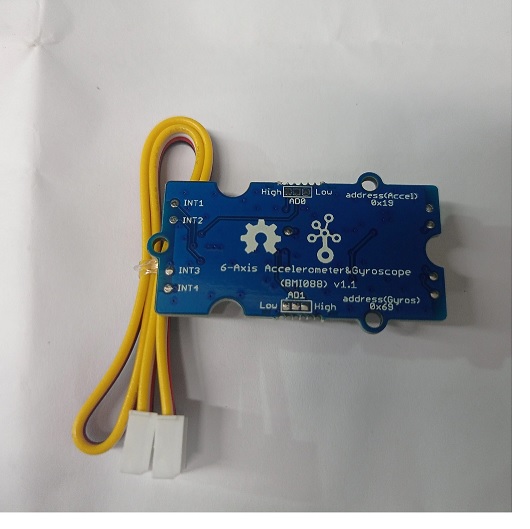

The Grove – 6-Axis Accelerometer & Gyroscope(BMI088) is a 6 DoF(degrees of freedom) High-performance Inertial Measurement Unit(IMU).This sensor is based on BOSCH BMI088, which is a high-performance IMU with high vibration suppression.
The 6-axis sensor combines a 16-bit triaxial gyroscope and a 16-bit triaxial accelerometer. Specially, you can use this sensor on the drone and robotics applications in demanding environments.
Features:
- The BM1088 is designed for drones, robotics and industrial applications with challenging performance requirements.
- Wide acceleration measurement range(up to 24g)
- The accelerometer features a low TCO of 0.2 mg/K and low spectral noise of only 230 pg/sqrt(Hz) in the widest measurement range of ± 24 g
Specification
Additional information
| Weight | 9 g |
|---|---|
| Dimensions | 14 × 8 cm |
| Operating Voltage | 3.3V / 5V |
| Accelerometer | ?3g @10920 LSB/g, ?6g @5460 LSB/g, ?12g @2730 LSB/g, ?24g @1365 LSB/g |
| Gyroscope | ?125?/s @262.1 LSB/?/s, ?250?/s @131.1 LSB/?/s, ?500?/s @65.5 LSB/?/s, ?1000?/s @32.8 LSB/?/s, ?2000?/s @16.4 LSB/?/s |
| Operating Temperature Range | -40? ~ +85? |

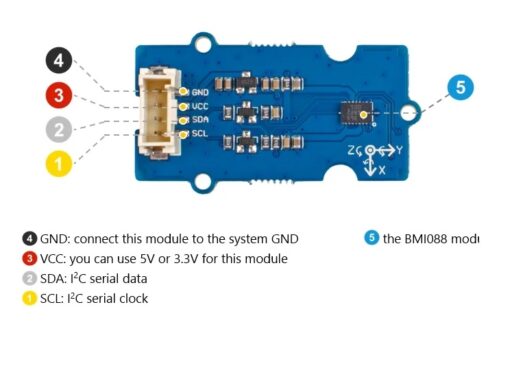

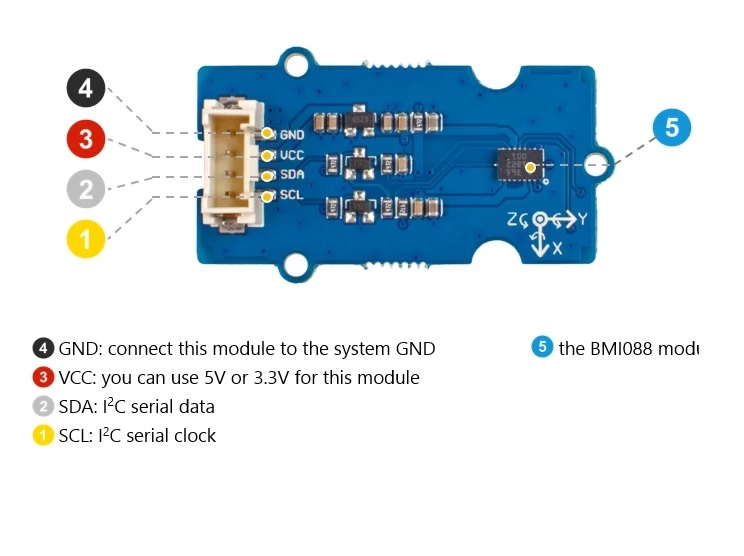

| External Interface | I2C |
| Battery | Excluded |
| Mounting hole diameter (mm) | 2 |
