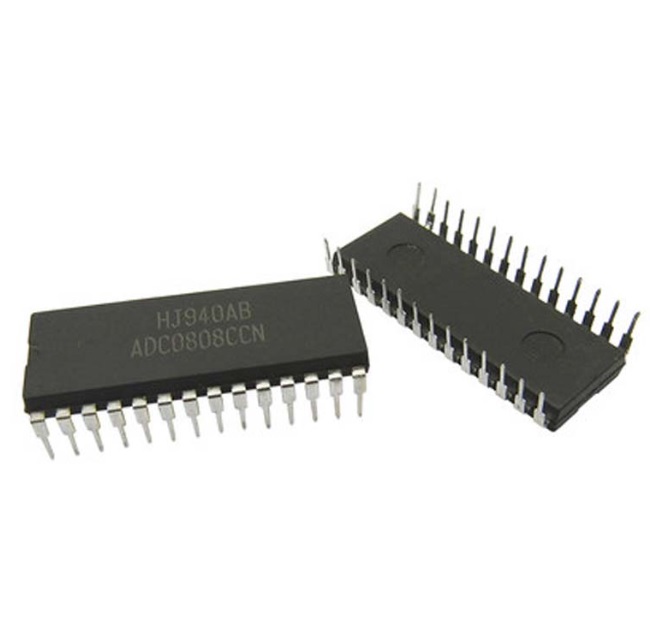

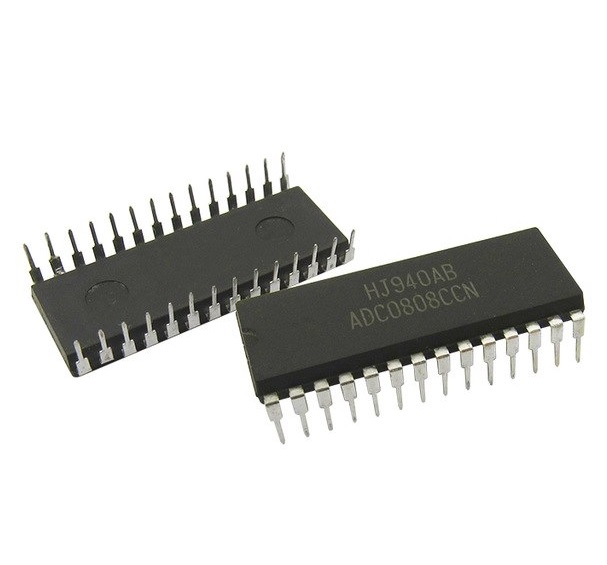

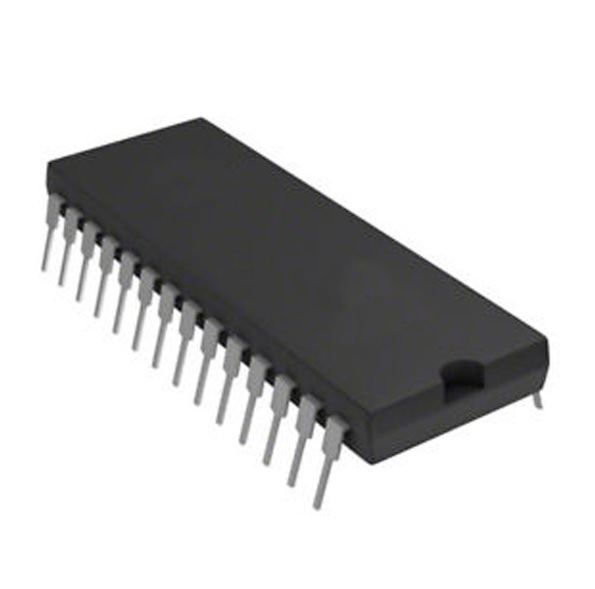

ADC0808CCN PDIP-28 Analog to Digital Converter-ADC
₹142.00 (Price is Exclusive of GST)
- Easy interface to all microprocessors 8 Bits Resolution
- Total Unadjusted Error ±½ LSB and ±1 LSB
- Low Power: 15 mW
- Conversion Time: 100 μs
- Operates ratiometrically or with 5VDC or analog span adjusted voltage reference
- No zero or full-scale adjust required
Description
ADC0808CCN
The ADC0808CCN PDIP-28 Analog to Digital Converter-ADC is a µP compatible Analog-to-digital Converter (ADC) with 8-channel multiplexer. The 8-bit A/D converter uses a successive approximation as the conversion technique. The converter features a high impedance chopper stabilized comparator, a 256R voltage divider with analog switch tree and a successive approximation register.
The 8-channel multiplexer can directly access any of 8-single-ended analog signals. The device eliminates the need for external zero and full-scale adjustments. Easy interfacing to microprocessors is provided by the latched and decoded multiplexer address inputs and latched TTL TRI-STATE outputs.
The design of the ADC0808 has been optimized by incorporating the most desirable aspects of several A/D conversion techniques. The ADC0808 offers high speed, high accuracy, minimal temperature dependence, excellent long-term accuracy and repeatability and consumes minimal power. These features make this device ideally suited to applications from a process.
Note: Image may vary from actual product in terms of Manufacturer/Brand name according to the availability.
Features:
- Easy interface to all microprocessors 8 Bits Resolution
- Total Unadjusted Error ±½ LSB and ±1 LSB
- Low Power: 15 mW
- Conversion Time: 100 μs
- Operates ratiometrically or with 5VDC or analog span adjusted voltage reference
- No zero or full-scale adjust required
- Green product and no Sb/Br
- Applications: Automation & Process Control, Signal Processing
Package Includes:
1 x ADC0808CCN PDIP-28 Analog to Digital Converter-ADC
Specification
Additional information
| Manufacturer: | Generic |
|---|---|
| Case/Package: | PDIP 28 |
| Min Supply Voltage | 4.5 |
| Max. Supply Voltage (V) | 6 V |
| Product Type | Analog to Digital Converters – ADC |
| Mounting Type: | Through Hole |
| Resolution: | 8bit |
| No. of Channels: | 8 Channel |
| Sampling Rate | 10 kS/s |
| Input Type | Single-Ended |
| Interface: | Parallel |
| Architecture | SAR |
| Power Consumption | 15 mW |
