Adjustable Resistor Box Kit 10 Values 3296W

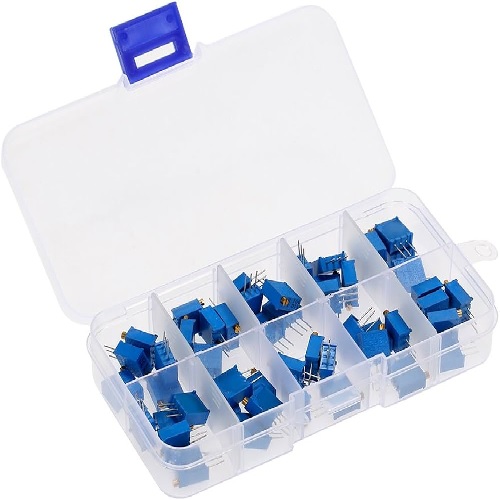

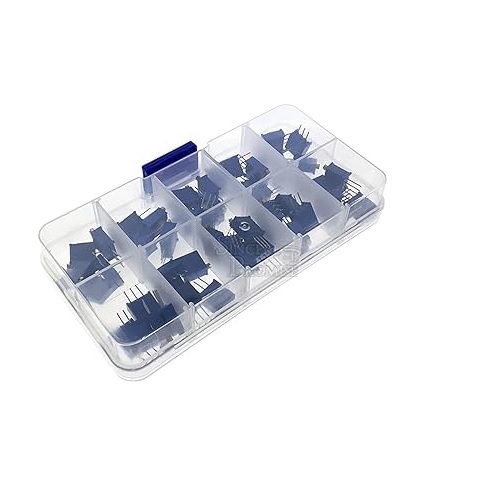

Adjustable Resistor Box Kit

Get the 50PCS 3296W Adjustable Potentiometer in a single kit .

This Adjustable Potentiometer Kit comes with 10 different types of Resistance ratings mostly used in electronics applications like auto IC, digital to analog circuit, single-chip microcomputer, photoelectric coupling, three-terminal voltage regulator, SCR.

This kit Contains different ranges of Potentiometers and The potentiometer is easy to mount on a PCB and it comes with Good Quality Plastic box with a separator to keep the Potentiometer in a sorted manner.

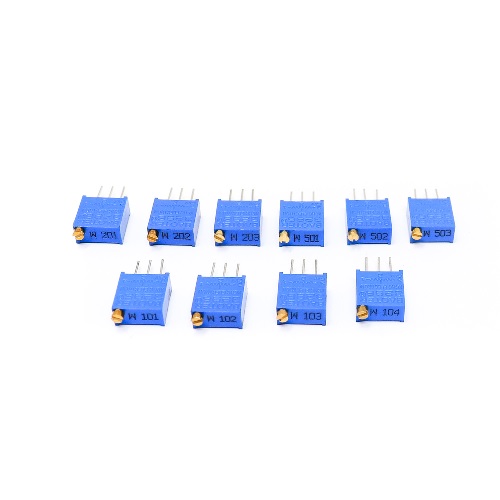

100 to 1M ohm 3296 Adjustable Resistor Assorted Kit
– 10 values, total 50 pieces ( each 5 pieces ).
– Packed in a plastic box.
Model:3296W
Withstand Voltage:500V
Rated Power:1/2W
Resistance Value:500Ω(501),1KΩ(102),2KΩ(202),5KΩ(502),10KΩ(103),20KΩ(203),50KΩ(503),100KΩ(104),200KΩ(204),1MΩ(105)
Tolerance:±10%
Adjustment Type:Top Adjustment
Mounting Type:Through Hole(DIP)
Turn Number:25
Resistance Change Type:Linear
Temperature Coefficient:±100ppm/℃
Resistive Material:Cermet
Color:Blue
