Lithion Power Semi Smart BMS 13S-35A-NMC Battery Management System BMS for Electric Vehicles, Telecom and ESS
₹1,190.00 (Price is Exclusive of GST)
Features
- 13S Configuration: Supports 13 cells in series, providing a nominal voltage of approximately 46.8V and fully charged at 54.6V.
- 35A Continuous Current: Capable of handling 35A continuous discharge, suitable for high-power applications.
- NMC Chemistry: Designed specifically for Nickel Manganese Cobalt (NMC) batteries, ensuring compatibility with high energy density and long cycle life.
- Semi-Smart Functionality: Provides basic monitoring and protection but without advanced smart features like Bluetooth.
- Protection Mechanisms: Includes over-voltage, under-voltage, overcurrent, and short-circuit protection to safeguard the battery pack.
- Cell Balancing: Passive cell balancing ensures even voltage distribution across all cells, enhancing battery efficiency and lifespan.
Description

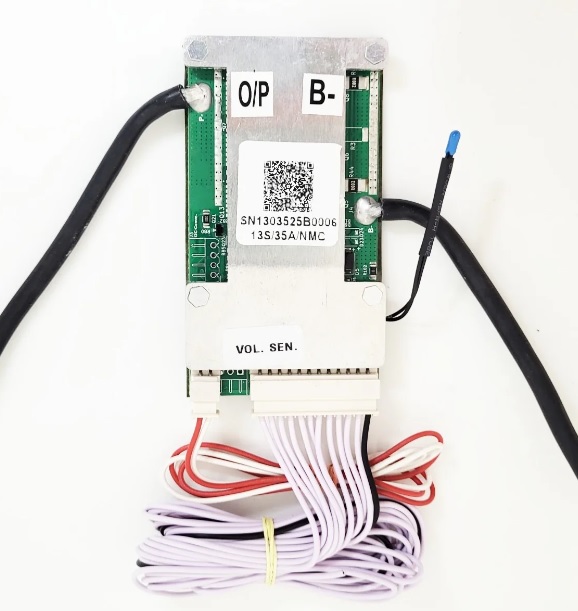

BMS 13S-35A-NMC
The Lithion Power Semi-Smart BMS 13S-35A-NMC is a highly efficient Battery Management System (BMS) designed for 13S lithium-based NMC (Nickel Manganese Cobalt) battery packs. This BMS ensures the safe operation of the battery pack by monitoring and controlling the battery’s voltage, current, and temperature. With a maximum current rating of 35A, this system is suitable for high-power applications. The semi-smart capabilities enable some advanced features like basic monitoring, while still maintaining a simpler and cost-effective design compared to fully-smart systems. It includes critical functions such as over-voltage, under-voltage, overcurrent protection, and cell balancing, ensuring optimal performance and longevity for NMC-based battery packs.
Application
The Lithion Power Semi-Smart BMS 13S-35A-NMC is ideal for medium to high-power applications requiring 13S NMC battery packs, including:
- Electric Vehicles (EVs): For lightweight electric cars or scooters.
- Energy Storage Systems: For use in larger solar energy storage setups.
- Power Tools: For high-performance cordless power tools and equipment.
- Electric Boats: For marine applications where high power and safety are crucial.
Specification
Additional information
BMS Type | Lithion Power Semi-Smart BMS |
---|---|
Cell Configuration | 13S (13 cells in series) |
Nominal Voltage | 46.8V (nominal) |
Max Voltage (Fully Charged) | 54.6V |
Max Discharge Current | 35A (Continuous) |
Cut-off Voltage | Typically 3.0V per cell |
Over-voltage Protection | Yes, per cell |
Under-voltage Protection | Yes, per cell |
Overcurrent Protection | Yes |
Short Circuit Protection | Yes |
Cell Balancing | Passive Balancing |
Temperature Protection | Optional, depending on model |
Battery Chemistry | NMC (Nickel Manganese Cobalt) |
