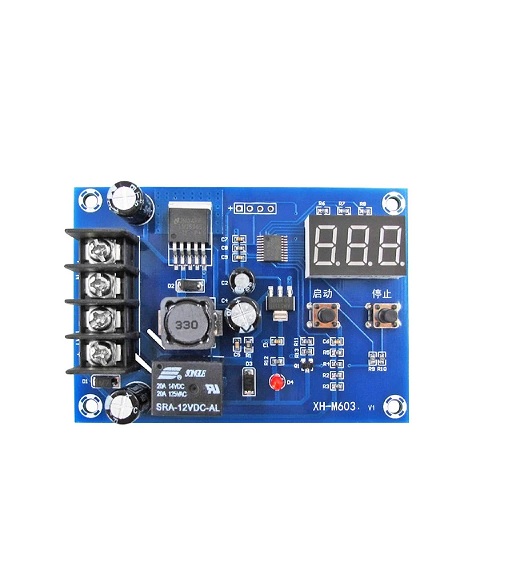

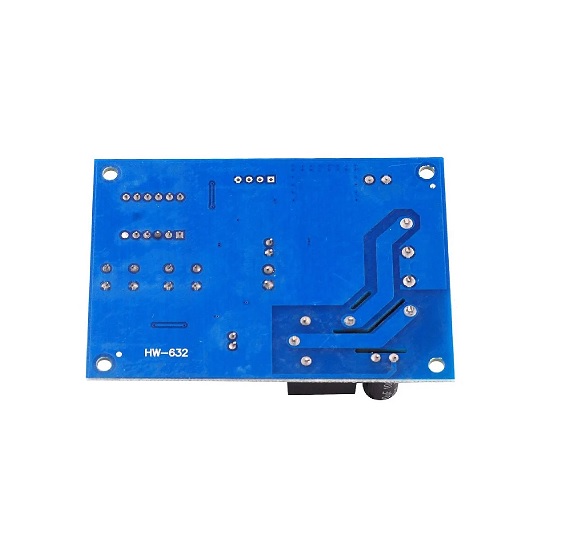

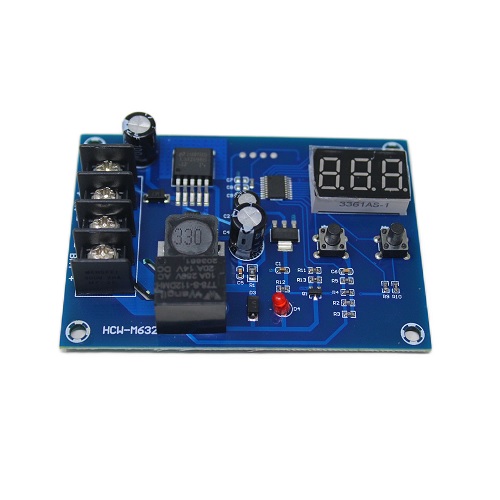

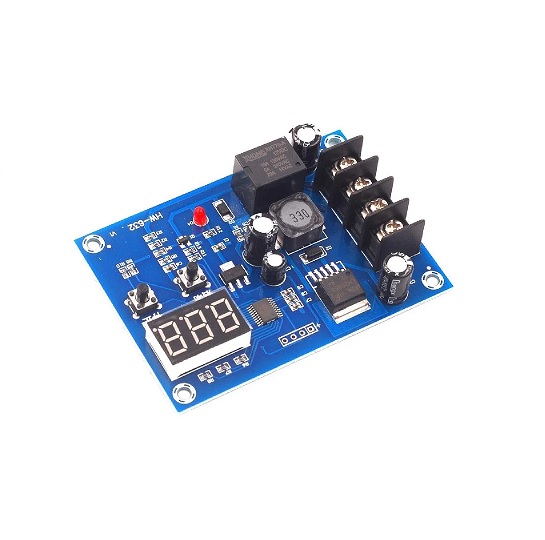

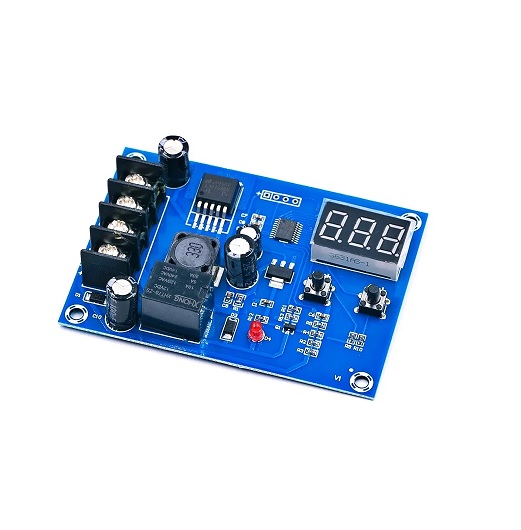

XH-M603 HW-632 Charging Control Module With LED Display
₹325.00
Features:
- Automatic control circuit connection
- Automatic charging and power off
- Real-time voltage monitor
- Autosave setting
- ST core chip
- LM2596 switch voltage regulator
Description
Charging Control Module
XH-M603 HW-632 Charging Control Module is a 12-24V Storage Lithium Battery Charger Control Switch Protection Board With LED Display. It is used in variety of applications.
Application Fields: 12-24V storage battery . It is applicable to solar cells, new energy batteries, Lead-acid batteries, nickel-cadmium batteries, nickel-metal hydride batteries, lithium-ion batteries, polymer batteries, Car battery, electric car battery
Using method:
1. Set Starting Voltage: in normal display voltage state, press the button will display start charging voltage; long press for 3s the digital tube will flash: you can start or stop button to set starting up charge voltage value.
2. Set Stop Voltage: in normal display voltage state, press the button will display stoping charge voltage;long-press the button for 3s the digital tube will flash; you can start or stop button to set stoping charge voltage value.
3. Factory Reset: in power-on state press the start/stop button at the same time, a digital tube will display 888; that represents factory reset settings.
Specification
Additional information
Weight | 400 g |
---|---|
Dimensions | 10 × 6 × 3 cm |
Input Voltage | DC 10-30V |
Display Precision | 0.1V |
Control Precision | 0.1V |
Output Type | direct output |
Voltage Tolerance | ±0.1V |
Dimension(mm) | 82 x 58 x 18 |
