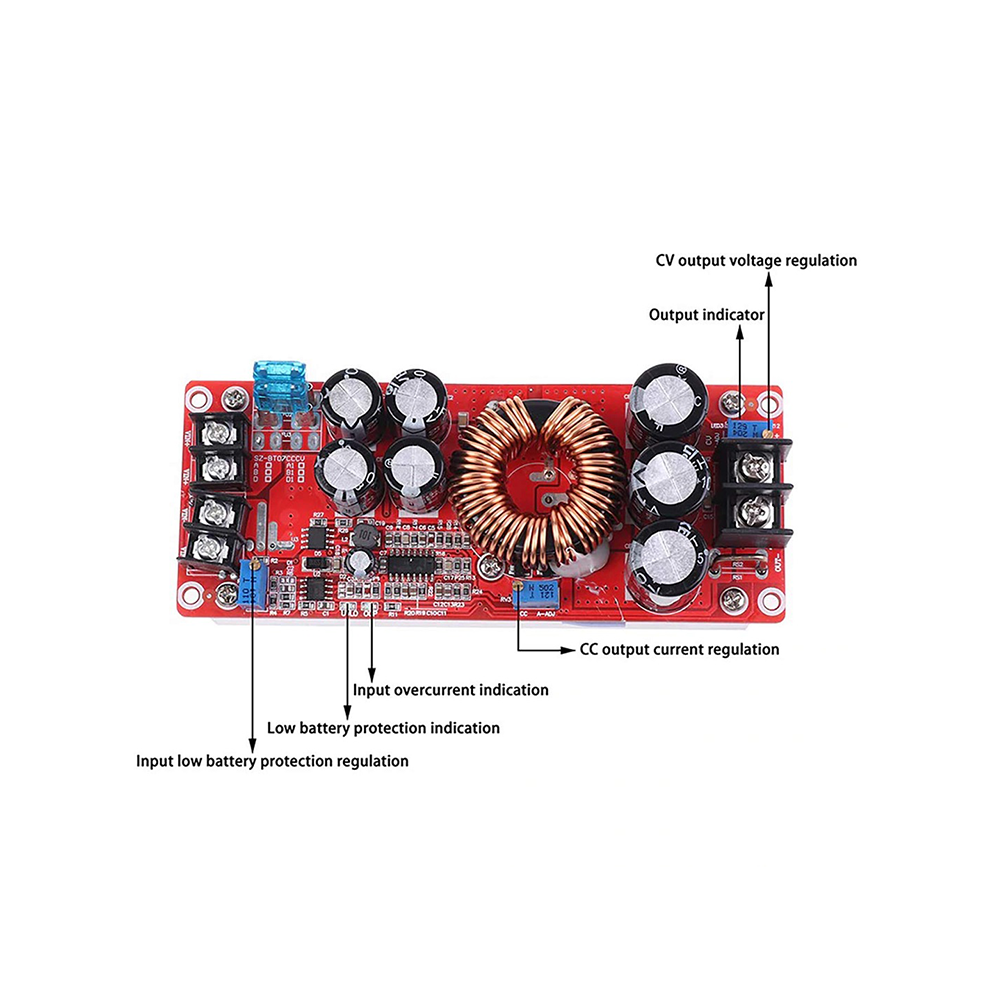

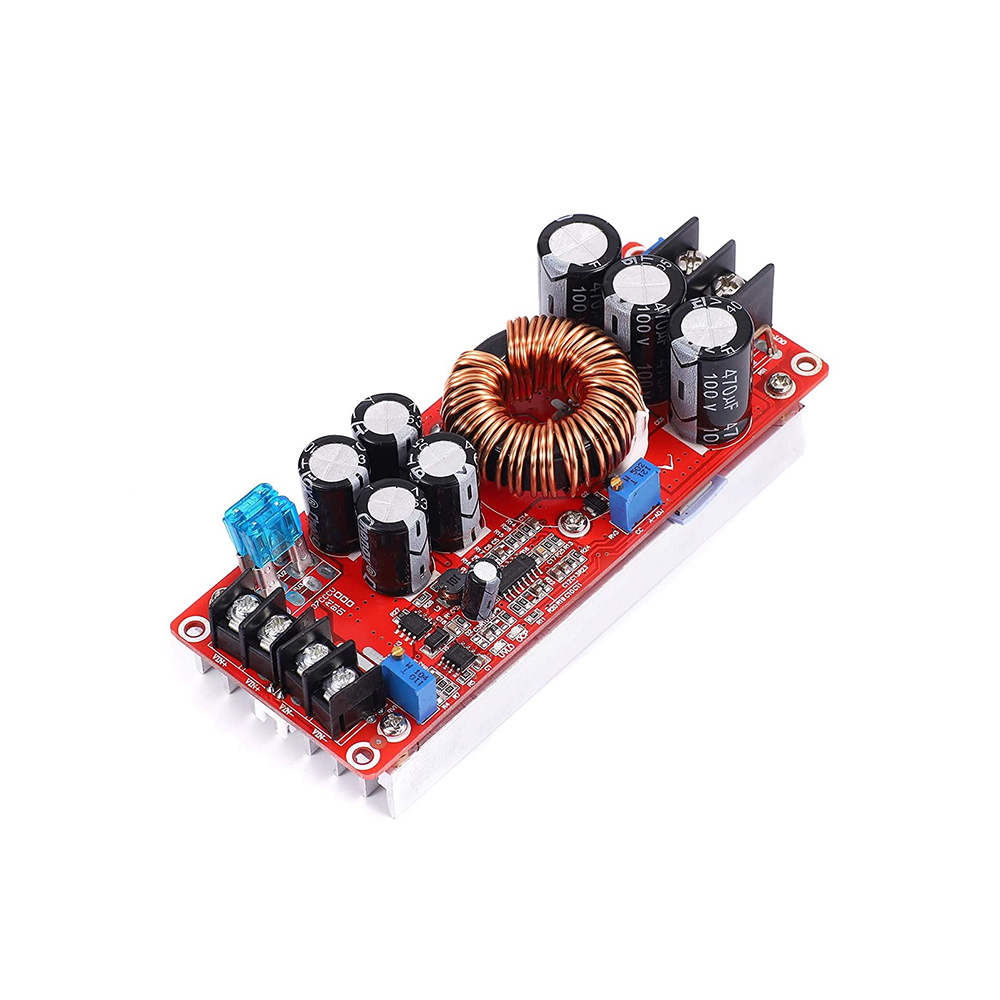

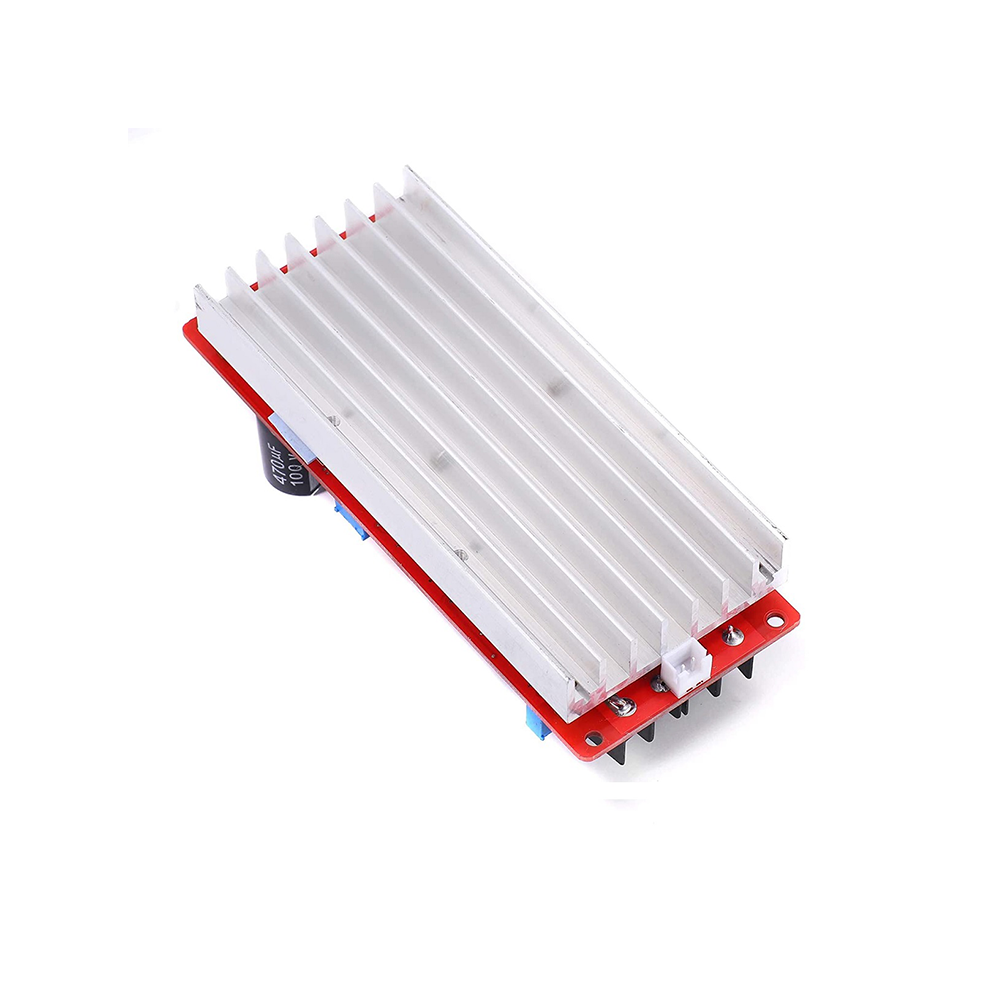

1200W DC-DC Boost Module 20A Step-up Boost Convertor 8-60V to 12-80V Adjustable Power Supply
₹795.00
- 1200W DC to DC step-up power supply module for electronic equipment with adjustable power supply module where you can set the output voltage according to device.
- Input and output are designed with screw terminals for convenient wire connection and disconnection.
- Input voltage: 8-60V
- Output voltage: 12-80V continuously adjustable
Description
DC Boost Module 20A
DC Boost Module 20A Input voltage: 8-60V Input current: 20A Output voltage: 12-80V continuously adjustable Output current: 20A MAX over 15A, please enhance heat dissipation(input, output pressure related, the greater the pressure the smaller the output current) Installation: four 3mm screws
Specification
Additional information
| Weight | 300 g |
|---|---|

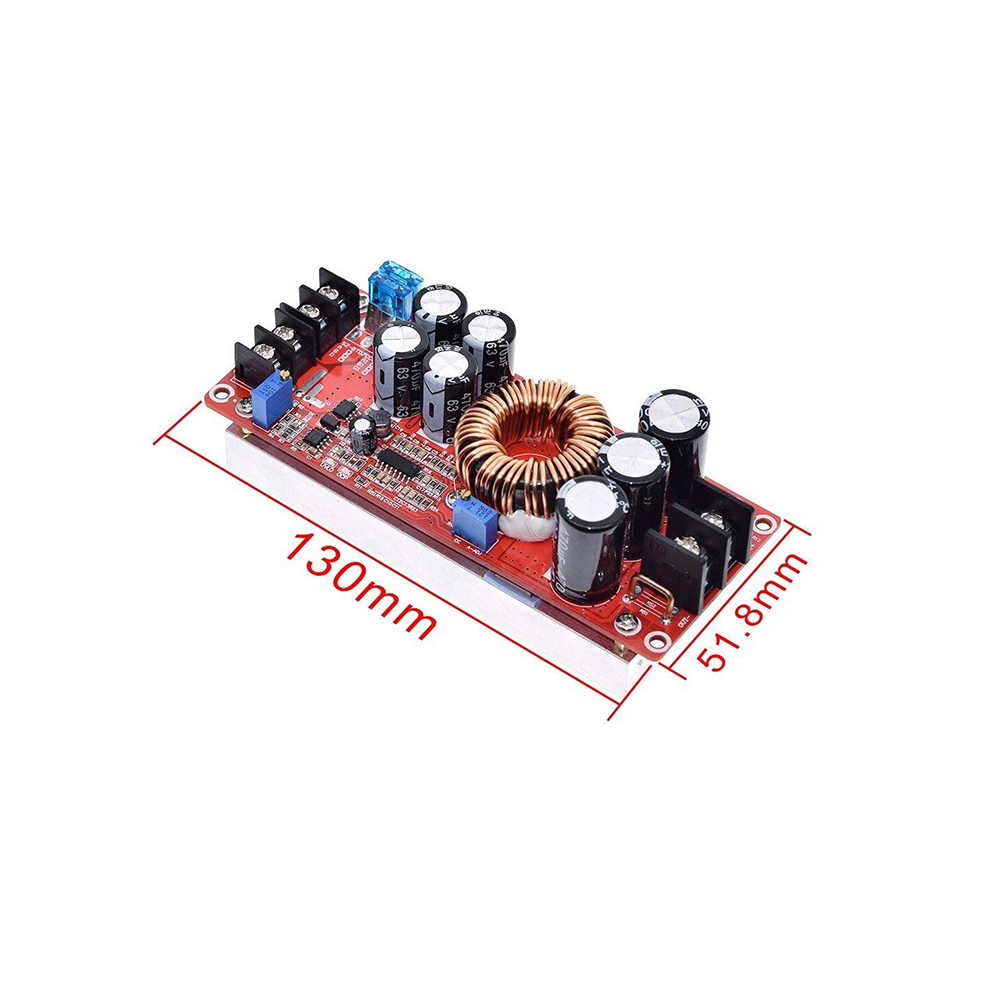

| Dimensions | 16 × 12 × 8 cm |
| Input voltage: | 8-60V |
| Output voltage: | 12-80V |
| Watt | 1200 |
