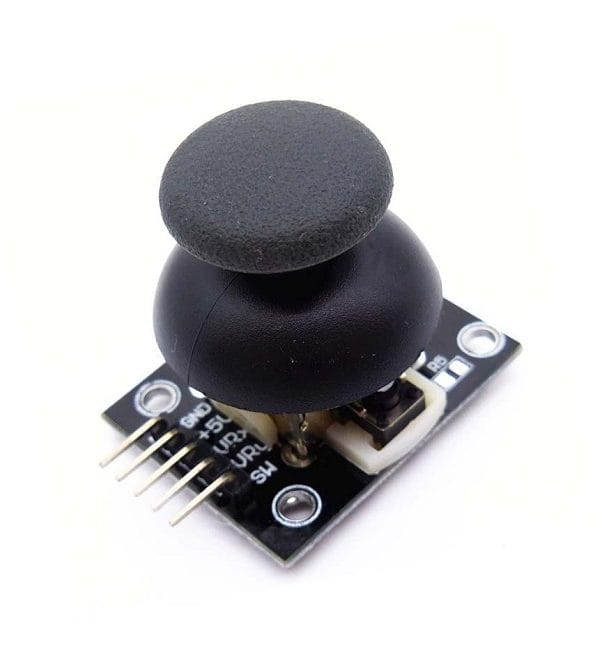

Dual-axis XY Joystick Module
₹42.00
- Input voltage range: DC 3.3V to 5V, Quality rocker, long life, stable performance
- Two analog outputs, one digital output
- X, y-axis output of the two potentiometers can be read out through the a to d converter
- Cross joystick is a bi-directional 10K resistor, with the rocker in different directions, the tap resistance with the change. This module uses 5V power supply, the original state of X, Y read voltage of 2.5V or so, when pressed with the arrow direction, the read voltage value increases with the maximum to 5V; arrows in the opposite direction to press, read the voltage decreases , The minimum is 0V.
- Package content: 1 joystick module
Description
Dual-axis XY Joystick Module
Dual-axis XY Joystick Module. Similar to the analog joystick on ps2 (PlayStation 2) controllers. The x and y axes are two-10k potentiometers which control 2d movement by generating analog signals. The joystick also has a push button that could be used for special applications. When the module works, it outputs two analog values and a digital value. The 2 analog outputs represent the location of the two potentiometers and the digital output represents if the button has been pressed.
Specification
Additional information
| Weight | 100 g |
|---|---|
| Dimensions | 5 × 5 × 5 cm |
| Input voltage range: | DC 3.3V to 5V |
| power supply | 5V |
