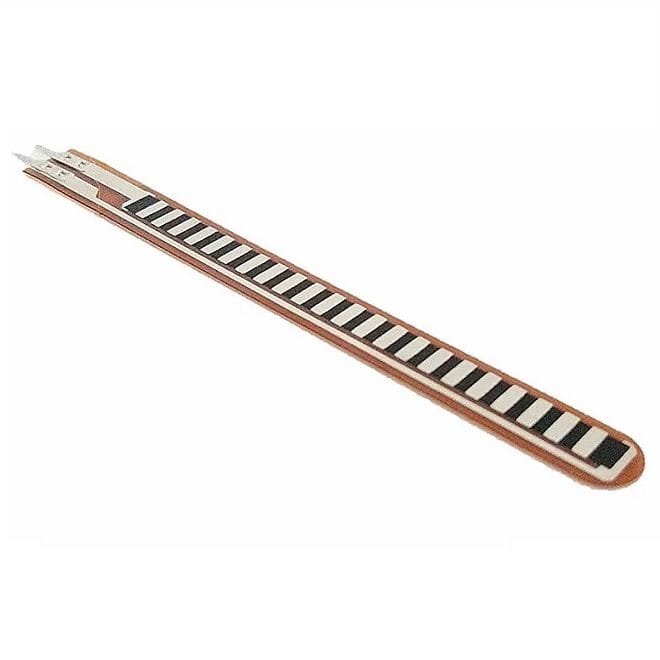

Flex Sensor 2.2 inch
₹186.00 (Price is Exclusive of GST)
It is a bend sensor for hang gesture recognition. It is a type of variable resistor. The technology of this item is based on resistive carbon elements. It detects the gesture through variation in resistance value. Its resistance increases when a body of components bends. Its radius is smaller, so it gives a higher resistance value.
Description
Flex Sensor
Flex Sensors are commonly used in Robotic Gloves and other Robotic Control application. It can be used to analyze how much a material is being bent. This is 2.2” long and has two output leads which acts like a variable resistor. That is the resistance between two pins change based on how much the sensor is bent.
Specification
Additional information
| Weight | 30 g |
|---|---|
| Dimensions | 8 × 4 × 10 cm |
| Temperature Range | : -35°C to +80°C |
| Flat Resistance: | 10K Ohms |
| Resistance Tolerance: | ±30% |
| Bend Resistance Range: | 60K to 110K Ohms |
| Power Rating : | 0.50 Watts |
