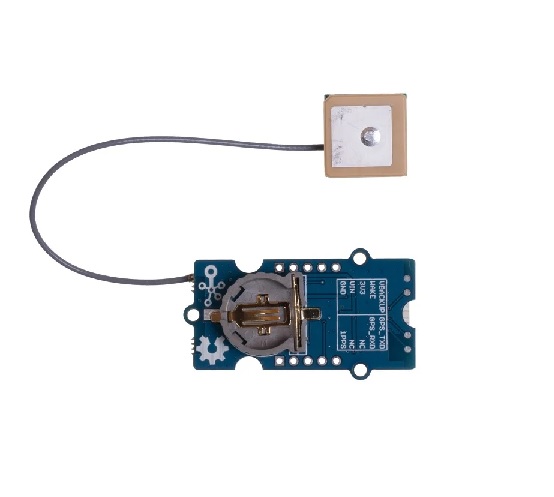

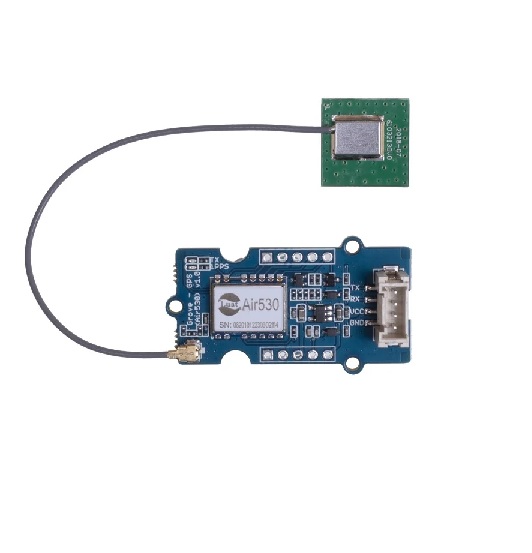

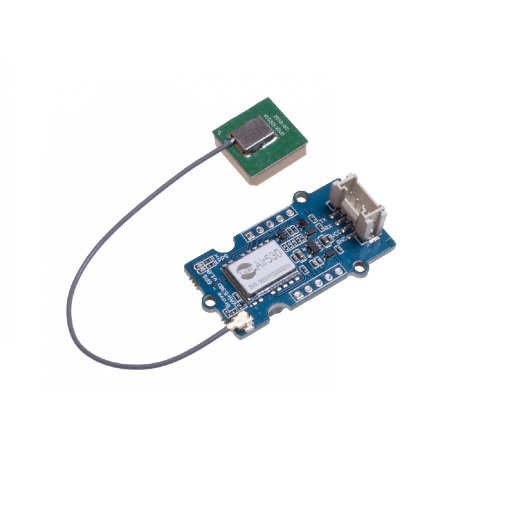

SeeedStudio Grove GPS (Air530)

₹1,378.00

Out of stock

Features:

  1. Positioning error within 10 meters
  2. Multi-mode satellite positioning & navigation and support more than 6 satellites at the same time
  3. The position still quickly and accurately under the condition of bad signal
  4. Low power consumption at only 31uA
  5. Compatible hard/soft interface for other modules
  6. Adopt the integrated design of RF baseband, which integrates DC/DC, LDO, LNA, RF front-end, baseband processing, 32-bit RISC based chip, RAM, FLASH storage, RTC and power management functions
  7. Cost-effective
  8. Compact size for easy deployment
Category:

₹1,378.00

Description

Grove GPS

Confused about your GPS not working well in urban or outsides under only one or a few satellite module? Then you should not miss our new Grove GPS (Air530). It’s a high-performance, highly integrated multi-mode satellite positioning and navigation module.

Grove GPS supports GPS / Beidou / Glonass / Galileo / QZSS / SBAS, which makes it suitable for GNSS positioning applications such as car navigation, smart wear, and drone.

Applications :
  1. GPS tracker
  2. GPS navigation
  3. Distance measurement
  4. Car navigation
  5. Drone
Cautions :
  1. The input power supply voltage of Grove power supply interface, should not exceed 5.6V, otherwise, it may damage the device.
  2. The voltage of the selected button battery should not exceed 3V, or it will probably damage the device.

  3. Features:

    1. Positioning error within 10 meters
    2. Multi-mode satellite positioning & navigation and support more than 6 satellites at the same time
    3. The position still quickly and accurately under the condition of bad signal
    4. Low power consumption at only 31uA
    5. Compatible hard/soft interface for other modules
    6. Adopt the integrated design of RF baseband, which integrates DC/DC, LDO, LNA, RF front-end, baseband processing, 32-bit RISC based chip, RAM, FLASH storage, RTC and power management functions
    7. Cost-effective
    8. Compact size for easy deployment

Specification

Additional information

Weight 16 g

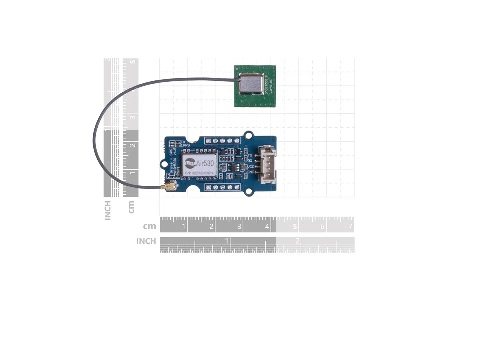

Dimensions 10 × 5 cm
Time of warm start

4s
Time of cold boot

30s
Working Temperature

-35°C-85°C
Storage Temperature

-55°C-100°C
Time of Positioning

Pure hardware cold start: 27.5s
Pure hardware hot start :<1S
Pure hardware recapture:<1S
Software-assisted A-GNSS:<5S
Sensitivity

Cold start: 148dBm
Hot Start: 162dBm
Recapture: 164dBm
Track: 166dBm
Accuracy

Horizontal positioning accuracy: 2.5m
High positioning accuracy: 3.5m
Speed accuracy: 0.1m/s
Time transfer accuracy: 30ns
