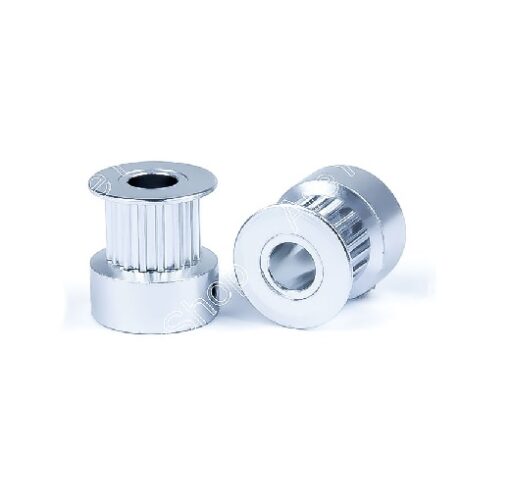

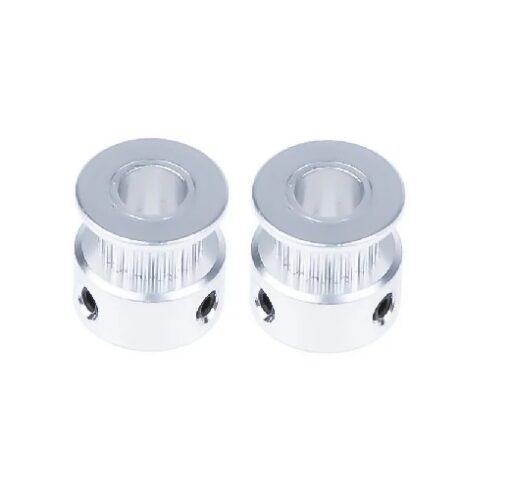

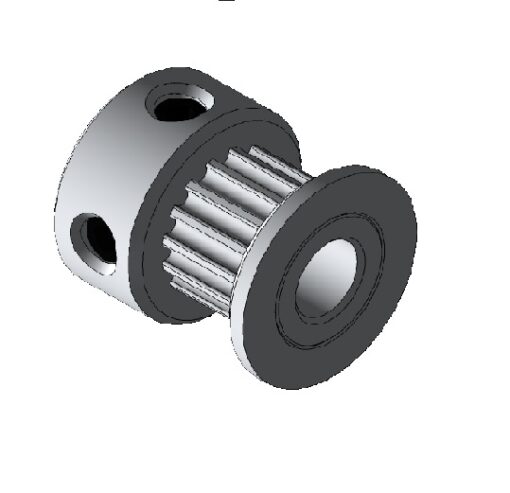

Aluminum GT2 16 Tooth Timing Pulley 5mm Bore For 6mm Belt – 2Pcs
Roll over image to zoom in
₹110.00 (Price is Exclusive of GST)
FEATURES-
- Material: Aluminum.
- No. of teeth: 16.
- Outer Diameter: 13mm.
- Inner Diameter: 5mm.
- Length: 14 mm.
- Weight: 6 gm.
GT2 16 Tooth Timing Pulley
This is Aluminum GT2 16 tooth timing pulley 5mm Bore For 6mm Belt. For precise motion control, GT2 belts and pulleys offer excellent precision at a great price. This pulley is meant for use with GT2 6mm wide belts only – MXL belts will slip due to the different tooth profiles.
This pulley has 16 teeth and a 5mm inner bore. Two set screws can be used to attach it firmly to any 5mm diameter shaft. Full aluminum construction means these are very light and very durable.
Note: As this Pulley has two grub fitting, it comes with + 0.4 to 0.7 mm tolerance for the differential motor shaft. It will loose fit the 5 mm shaft without grub fitting. Please note before buying.
Additional information
| Weight | 6 g |
|---|---|
| Pitch | 2mm (GT2) |
| Teeth | 16 |
| Bore diameter | 5mm |
| Belt width | 13mm |
| Material | Aluminium |
