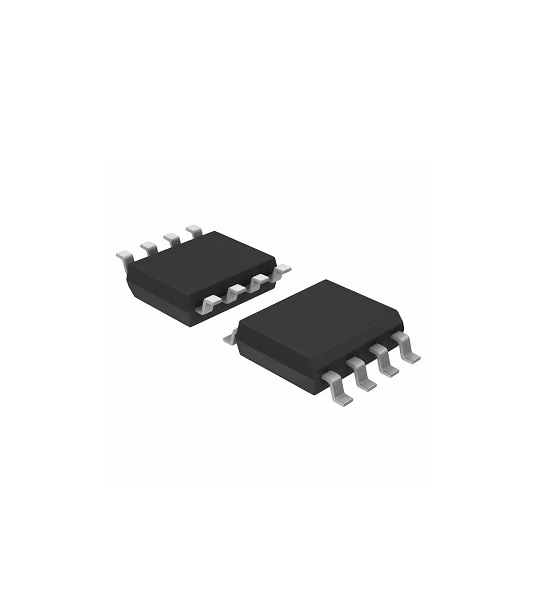

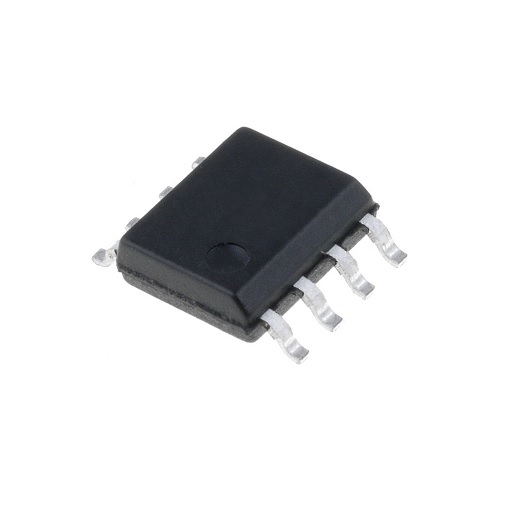

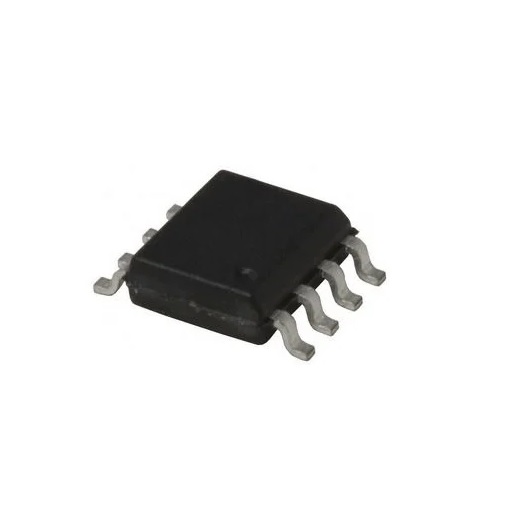

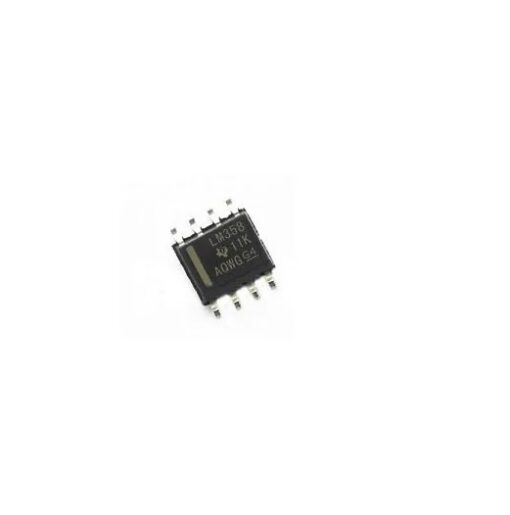

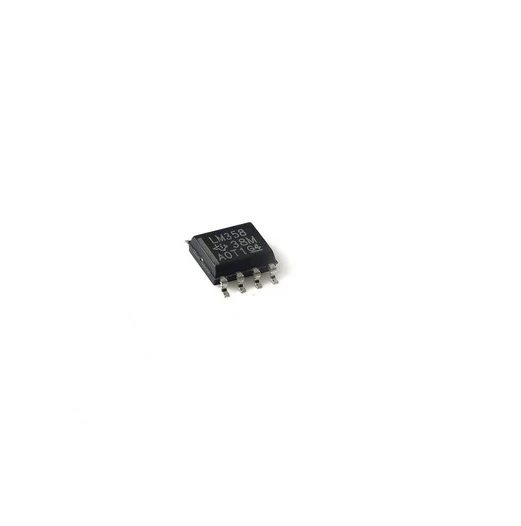

LM358DR SOIC-8 High Gain Operational Amplifier
₹39.00
Features:
- Single supply voltage from 3V to 32V and dual supply range from ±1.5V to ±16V
- Slew rate at unity gain is 0.3 V/µs
- Wide unity gain bandwidth of 0.7MHz
- Low drain supply current is 0.7mA independent of supply voltage
- Input offset voltage of 3mV
- Input offset current of 2nA
- Input bias current of -20nA
- Differential input voltage range equal to the maximum rated supply voltage of 32V
- Common mode rejection ratio (CMRR) of 80dB
- Operating temperature range from 0°C to 70°C
- Applications: Signal Processing, Sensing & Instrumentation, Consumer Electronics, Portable Devices, Motor Drive & Control
Description
High Gain Operational Amplifier
The LM358DR is a dual High Gain Operational Amplifier in an 8 pin SOIC package. It consists of two independent, high gain frequency compensated operational amplifiers designed to operate from a single supply or split supply over a wide range of voltages.
Specification
Additional information
| Weight | 5 g |
|---|---|
| Dimensions | 8 × 6 × 3 cm |
| Amplifier Type | High Gain Amplifier |
| Minimum Supply Voltage (V) | 3 |
| Maximum Supply Voltage (V) | 32 |
| Number of Channel | 2 |
| Output Current Per Channel | 30 mA |
| Input Bias Current (Ib) | 150 nA |
| Gain Bandwidth Product (GBP) | 700 kHz |
| Input Offset Voltage (Vos) | 7 mV |
| Slew Rate (SR) | 0.3 V/us |
| CMRR (dB) | 65 ~ 80 |
| Voltage Gain (dB) | 100 |
