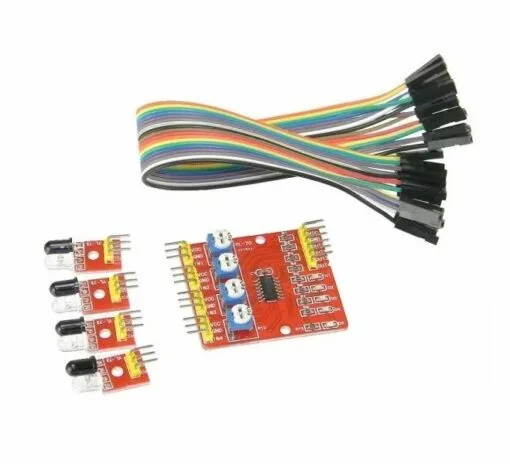

IR Sensor Array 4 way Module
Roll over image to zoom in
₹265.00 (Price is Exclusive of GST)
Features:
Working voltage: DC 3.3V-5V
Working current: try to choose more than 1A power supply
Working temperature: 10oC +50oC
Mounting aperture: M3 screws
IR Sensor Array 4 way Module
IR Sensor Array 4 way Module provides a versatile infrared detection system solutions for automation machinery devices such as smart cars, robots. IR Sensor Array is adaptable to ambient light. It has a pair of infrared transmitting and receiving tube. Transmitting tube sends out a certain frequency IR which will be reflected when detecting obstacles (reflecting surface) and received by receiving tube.
To know more about IR Sensor, Click on IR Sensor Array
Additional information
| Weight | 20 g |
|---|---|
| Dimensions | 10 × 8 × 6 cm |
| Operating Voltage Range | 3.3V – 5V |
| Operating Current | >1A |
| Operating temperature | -10 C – +50 C |
| Detecting Range | 1 to 60 mm |
| Output signal | TTL level |
