30A Intelligent LCD Solar Controller
₹376.00
Features:
- Built-In Industrial Micro Controller
- Big LCD Display
- Full 4 Stage PWM Charge Management
- Dual MOSFET Reverse Current Protection
- Low Heat Production
Description

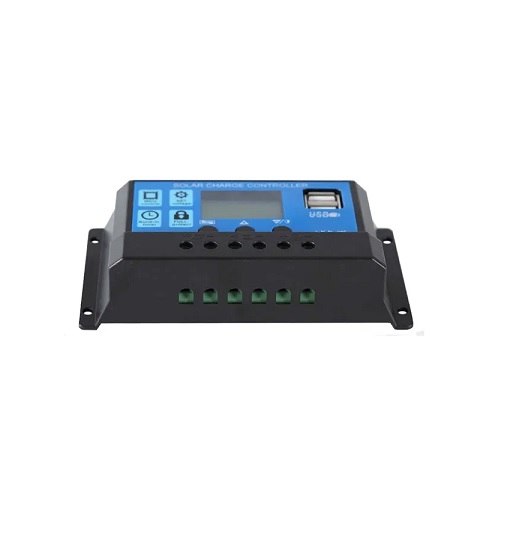

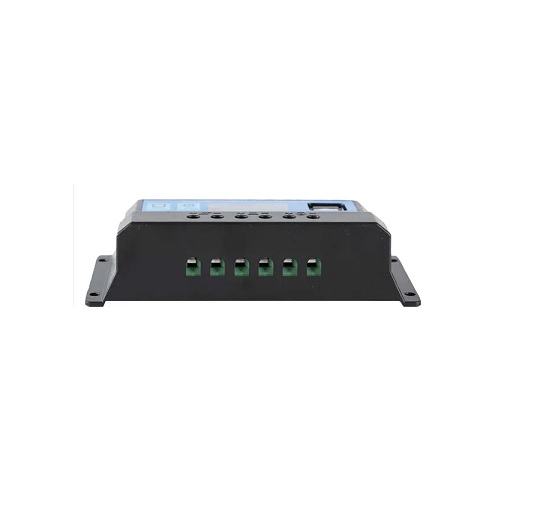

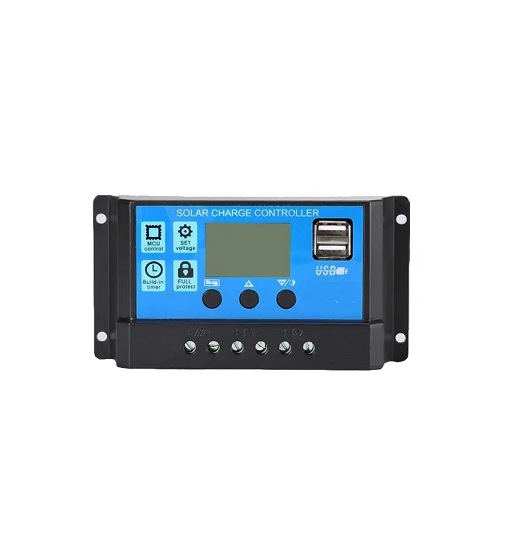

LCD Solar Controller
This is a Digital PWM LCD Solar Charge Controller for the lead-acid batteries connected to a solar power system. When connected to the battery, this charge controller automatically detects the battery voltage from 12V-24V.
This charge controller has some advanced features like built-in short circuit protection, open-circuit protection, reverse voltage protection, overload protection, etc which makes it ideal for grid power systems.
Specification
Additional information
| Weight | 160 g |
|---|---|
| Dimensions | 15 × 8 × 4 cm |
| Battery Input | 12-24V Auto |
| Charging Current (A) | 30 |
| Discharge Current (A) | 30 |
| Max. Solar Input (V) | <50 |
| USB | 3A@5V |
| Operating Temperature Range (°C) | -35~60 |
