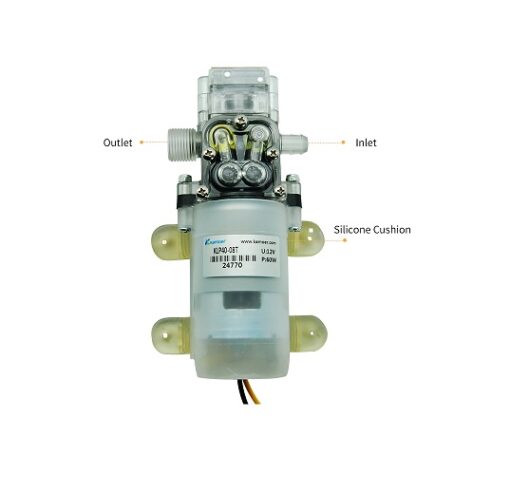

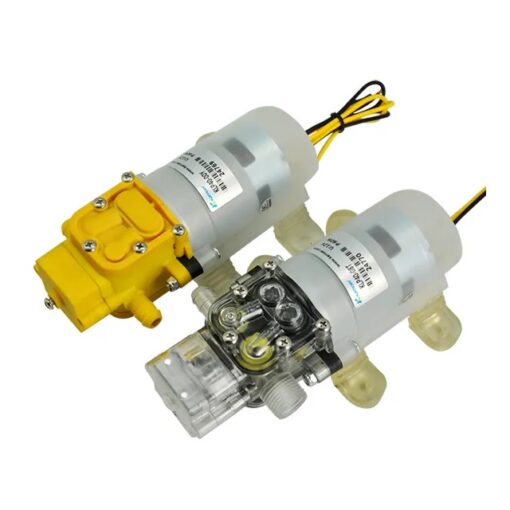

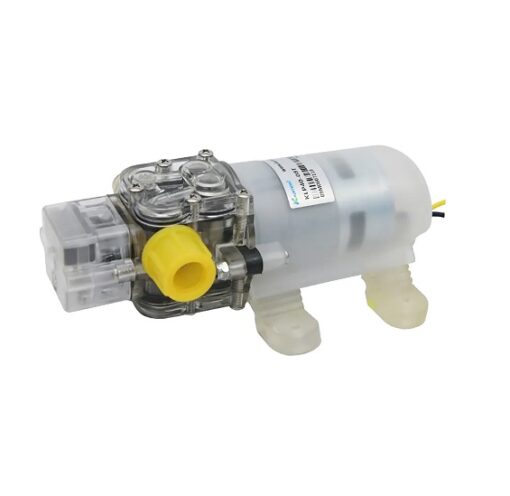

12V 3.5A 4000ml/min Liquid Diaphragm Pump
₹835.00
Features:
- Self-Priming
- Low Power Consumption
- Long Life
- Can Run in Dry Condition
Description
Liquid Diaphragm Pump
KLP40 series liquid diaphragm pumps from kamoer are based on a simple principle of the oscillating displacement pump, which is remarkably simple in design. The rotational power from the motors is converted into vertical movement by an eccentric gearbox.
This motion is then transferred to a diaphragm by means of a connecting rod which is in conjunction with an inlet and outlet valve creates a pumping action.
The KLP40 type liquid pumps can be mounted in any position and can deliver up to 4000ml/min operated on 12V.
Applications:
- Garden watering system.
- Car washing.
- Acquarium water pumping
- Water purifier equipment
- Water supply in various machine tools
Specification
Additional information
| Weight | 600 g |
|---|---|
| Dimensions | 18 × 10 × 7 cm |
| Model | KLP40-08T |
| Operating Voltage (VDC) | 12 |
| Operating Current (A) | 3.5 |
| Operating Temperature (°C) | 0 to 40 |
| Flow Rate (ml/min) | 4000 |
| Noise Level (dB) | 60 |
