MAX7219 Dot Led Matrix Module MCU Control LED Display Module
Roll over image to zoom in
₹100.00 (Price is Exclusive of GST)
- Driver Chip: MAX7219
- Input Voltage: 3.7 to 5.3 V
- Input Current: 320 mA
- Display Dimensions: 32x32x6 (LxWxH) mm
- PCD Dimensions: 50×32 (LxW) mm

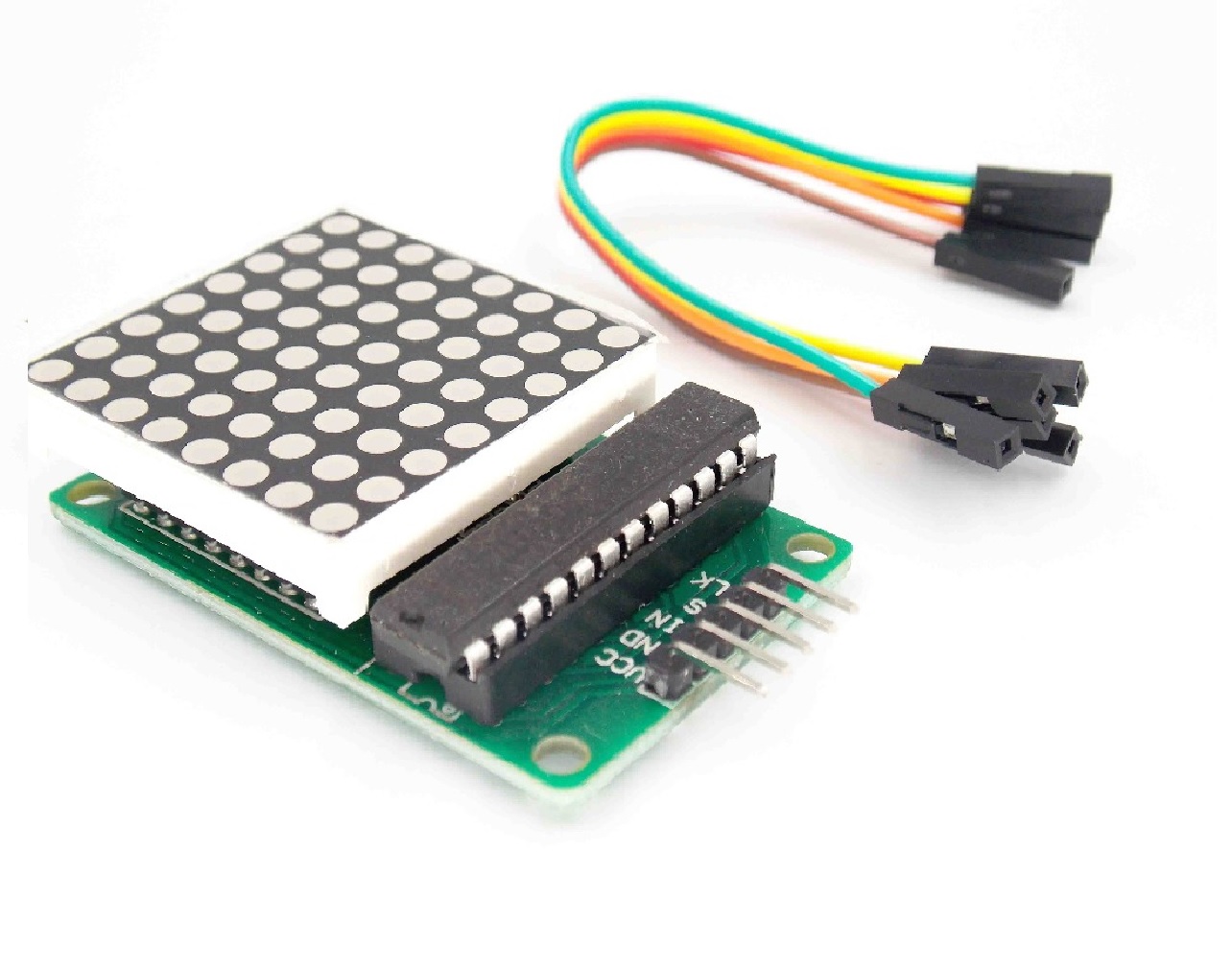

MAX7219 Dot Led Matrix Module
MAX7219 Dot Led Matrix Module is a serial input common-cathode driver that interfaces micro-controllers to LED matrices. All common micro-controllers can be connected to this module by using a 4-wire serial interface. Each output can be addressed without refreshing the entire display. This module requires only 3 I/O lines for driving the display, making it ideal for your microcontroller projects. Only one external register is used to set the segment current of each LED.
click here to know more!
Additional information
| Weight | 20 g |
|---|---|
| Dimensions | 3.6 × 3.6 × 6 cm |
| Input Voltage (V) | 5 |
| Max. Operating Current (mA) | 320 |
| LED Color | Red |
