0.28inch 0-100V Three Wire DC Mini Voltmeter Display Green

80.00

Out of stock

  • Don’t compromise best price and high quality
  • Package Includes :- 1pcs voltmeter
  • Operating Voltage: 0-100 VDC
  • this voltmeter will automatically move the decimal point’s position according to the different measuring voltage
  • It is a 3-wire display.

80.00

Description

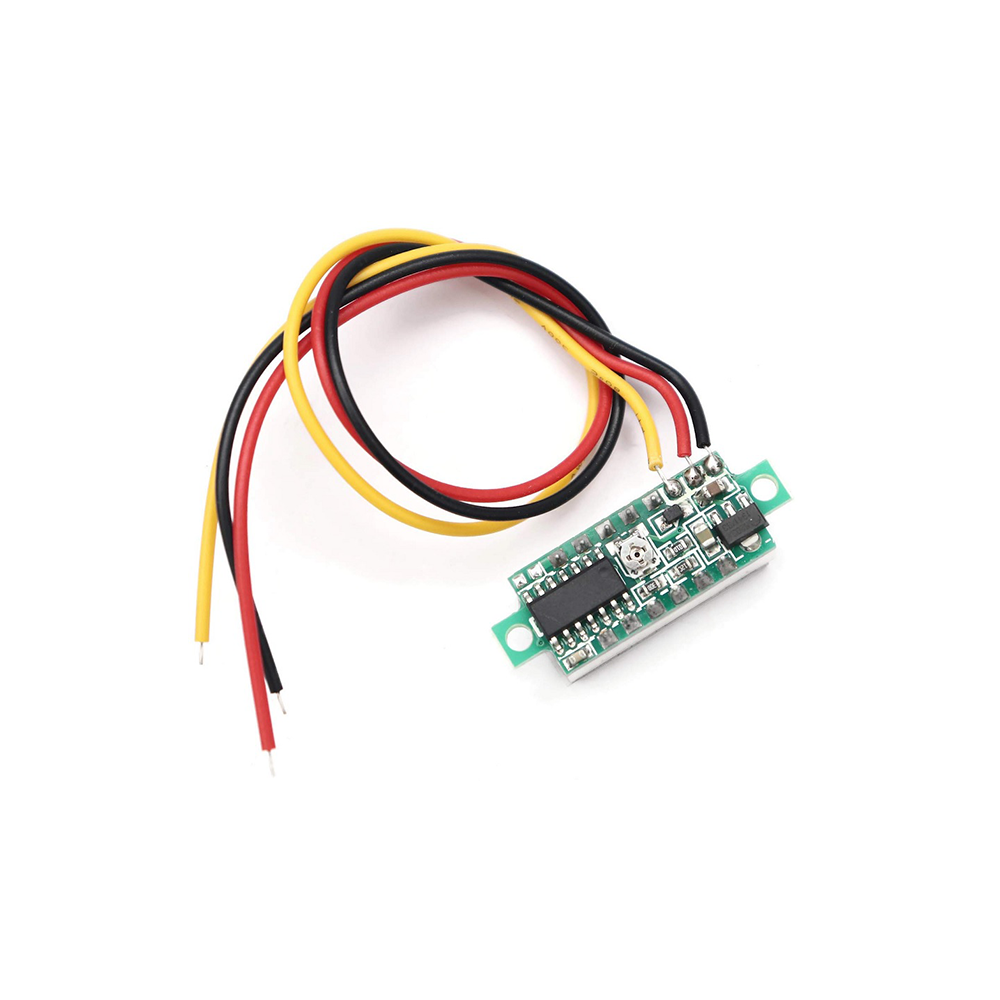

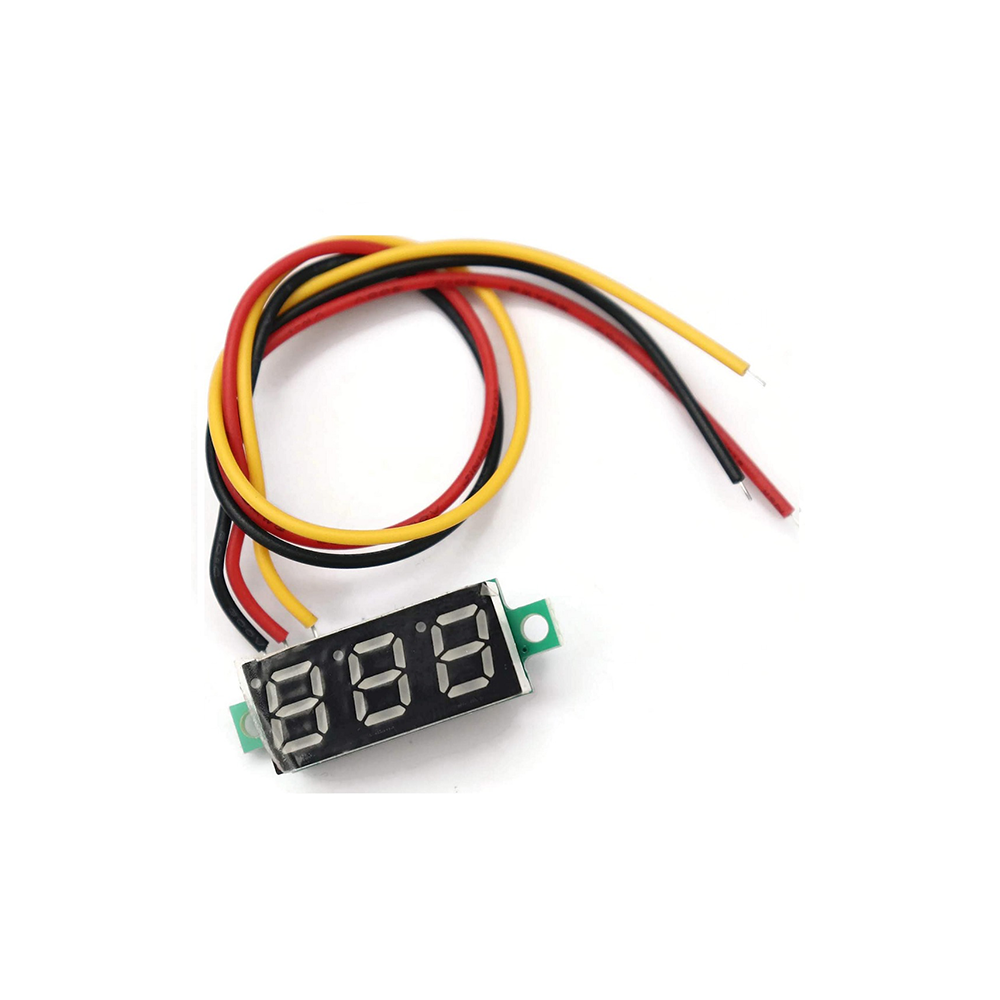

Mini Voltmeter Green

Mini Voltmeter Green can be used to measure the storage battery’s voltage in motorcycles and cars and also can grasp the storage battery’s status. It also can be used to measure other voltage. 30V is the voltmeter’s maximum operating limited voltage, please leave enough margin when working, to avoid voltmeter’s permanent damage because of an electrical spark, power supply ripple, or other too high abrupt change of voltage.

Specification

Additional information

Weight 100 g
Dimensions 3 × 2 × 1 cm
Measuring range

DC 3.5~30V two-wire access

Mounting holes distance:

29mm

Measurement accuracy

1 %(+/- 1 digit)

Display:

Three 0.28 " LED digital tube

Cutting size:

23.5mm x 10mm
