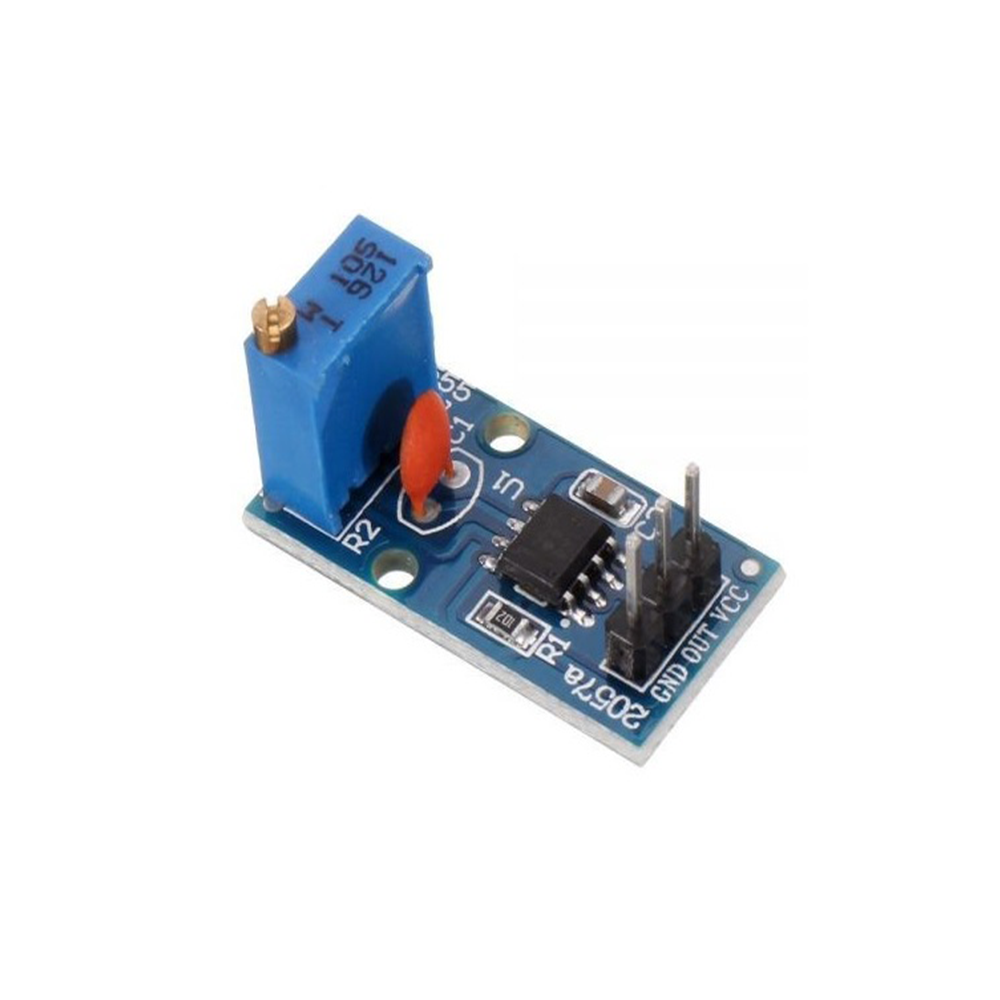

NE555 Frequency Adjustable Pulse Generator Module
₹35.00 (Price is Exclusive of GST)
- Single channel signal output, the output duty cycle about 50% square wave.
- Plate load resistor, adjust the resistance to control the output frequency.
- Onboard power indicator.
- Working voltage: 5V~12V.
- Onboard NE555 IC.
Description
NE555 Frequency Adjustable Module
NE555 Frequency Adjustable Module Single channel signal output, the output duty cycle about 50% square wave. Plate load resistor, adjust the resistance to control the output frequency. Onboard power indicator. Working voltage: 5V~12V. Specification: Size: Approx. 26x14x12mm / 1.02×0.55×0.47inch Color: Blue Package Includes: 1 Piece of Pulse Generator Module
Specification
Additional information
| Weight | 20 g |
|---|---|
| Dimensions | 3 × 2 × 1 cm |
| Input Voltage: | 5V-15VDC |
| Output amplitude: | 4.2V V-PP to 11.4V V-PP. |
| Output Current : | 15mA for 5V & 35mA for 12V. |
| Working voltage: | 5-12V |
| Color: | Blue |
