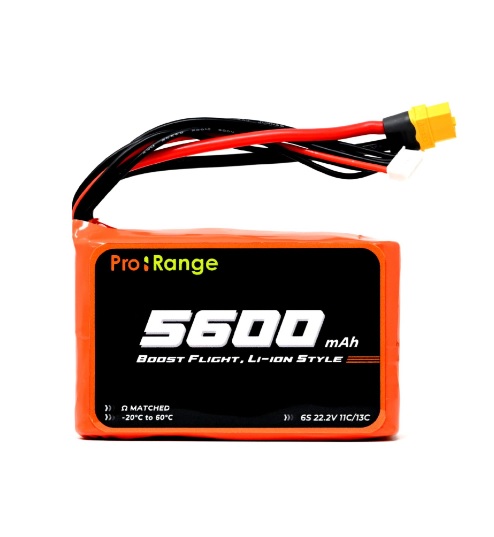

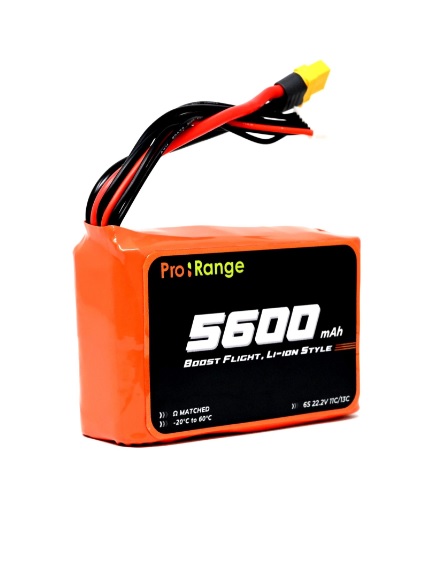

Pro-Range INR 18650 P28A 22.2V 5600mAh 6S2P 50A/60A Discharge Li-ion Drone Battery Pack
₹6,100.00 (Price is Exclusive of GST)
- Nominal Capacity (mAh): 5600
- Nominal Voltage (v): 22.2
- Max Charging Voltage (v): 25.2
- Charge Port: 7 Pin JST XH
- Discharge Port: Amass XT60
Description
Pro-Range INR 18650 P28A 22.2V 5600mAh
For using in drone applications use these voltages for failsafe
1. Battery failsafe trigger: 19.2V (20% reserve)
2. Minimum Voltage for flying: 17.4V
Features:
- Made with High performance Molicel 28A/P42A/P45B made in Taiwan.
- Each battery pack is made with impedence matched cells for maximum performance.
- Most compact and light weight for the capacity.
- Longer Flight Time.
- Higher WH/Kg than Li-Po Topology.
- Supirior Performance at Less than -20°C.
- No Puffing/Bulging of Cells.
Package Includes:
1 x Pro-Range INR 18650 P28A 22.2V 5600mAh 6S2P 50A/60A Discharge Li-ion Drone Battery Pack
Specification
Additional information
| Nominal Voltage (V): | 22.2 |
|---|---|
| Nominal Capacity (mAh): | 5600 |
| Discharge Current: | 13C |
| BMS (Y/N): | N |
| Charge Connector: | 7 Pin JST XH |
| Discharge Port: | Amass XT60 |
| Max. Charging Voltage (V) | 25.2 |
| Max. Discharging Voltage (V) | 17.4 |
| Charging Current | 7C |
