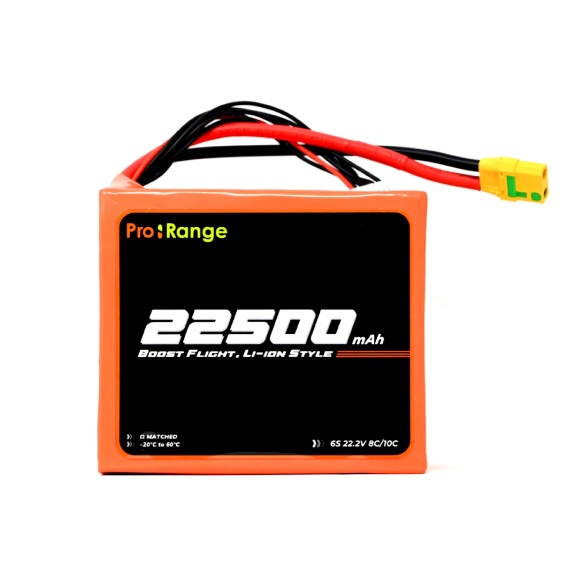

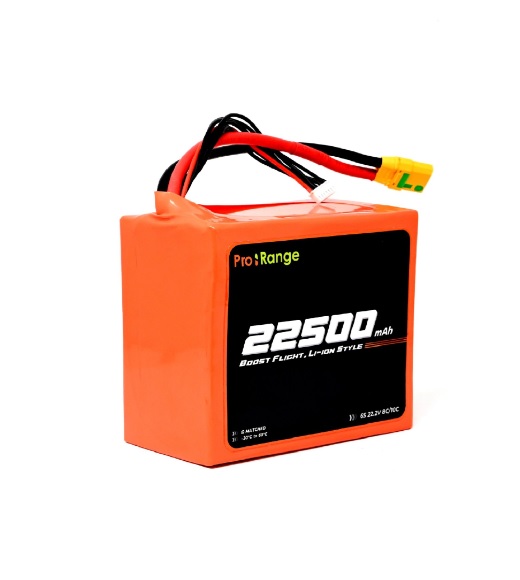

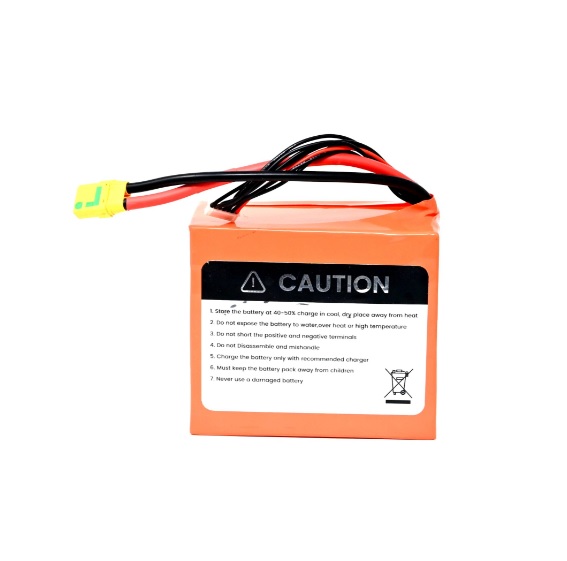

Pro-Range INR 21700 P45B 22.2V 22500mAh 6S5P 180A/225A Discharge Li-ion Drone Battery Pack with Amass XT90S Anti-Spark
₹22,694.00 (Price is Exclusive of GST)
- Nominal Capacity (mAh): 22500
- Nominal Voltage (v): 22.2
- Max Charging Voltage (v): 25.2
- Charge Port: 7 Pin JST XH
- Discharge Port: Amass XT90 AS
Description
Pro-Range INR 21700 P45B 22.2V 22500mAh
For using in drone applications use these voltages for failsafe
1. Battery failsafe trigger : 19.2V (20% reserve)
2. Minimum Voltage for flying : 17.4V
Pro-Range Custom Battery Pack:
We build battery packs according to your specific requirement of Size, Shape, Connector type, Cell Type or Brand, and Battery Capacity. To order your custom battery pack Click Here.
Are you confused to choose between li-ion and li-po batteries for your drone and RC applications? Click here to watch our video.
Features:
1. Assembly with High performance Molicel P28A/P42A/P45B made in Taiwan.
2. Each battery pack is made with impedance matched cells for maximum performance.
3. Most compact and light weight for the capacity.
4. Longer Flight Time.
5. Higher WH/Kg than Li-Po Battery packs.
6. Superior Performance at Less than -20°C.
7. No Puffing/Bulging of Cells.
Package Includes:
1 x Pro-Range INR 21700 P45B 22.2V 22500mAh 6S5P 180A/225A Discharge Li-ion Drone Battery Pack with Amass XT90S Anti-Spark
Specification
Additional information
| Nominal Voltage (V): | 22.2 |
|---|---|
| Nominal Capacity (mAh): | 22500 |
| Discharge Current: | 10C |
| BMS (Y/N): | N |
| Charge Connector: | 7 Pin JST XH |
| Discharge Port: | Amass XT90 AS |
| Max. Charging Voltage (V) | 25.2 |
| Max. Discharging Voltage (V) | 17.4 |
| Charging Current | 5C |
