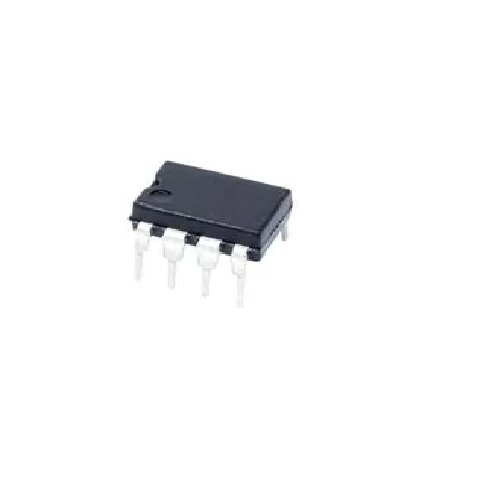

RC4558P Operational Amplifiers

Name: RC4558P Operational Amplifiers at best rate in India
SKU: OL-P-083
Price: 23.00 INR
Availability: InStock

₹23.00

RC4558P Operational Amplifier

Subcategory:Amplifier ICs

Supply Type:Single, Dual

Technology:Bipolar

Voltage Gain dB:109.54 dB

Width:6.35 mm

Unit Weight:440.400mg

1 in stock

SKU: OL-P-083 Category: Operational Amplifiers (Op-Amps) ICs

Description
Reviews (0)

Description

RC4558P Operational Amplifier

The RoHS compliance of any product so designated is based upon evidence from the producer (manufacturer) that the part number complies with the RoHS Directive.

Mouser Electronics has taken all reasonable steps to confirm producers’ statements and other evidence regarding the absence of the restricted substances to support the manufacturers’ claim of compliance.

Number of Channels:	2 Channel
GBP – Gain Bandwidth Product:	3 MHz
SR – Slew Rate:	1.7 V/us
Vos – Input Offset Voltage:	6 mV
Ib – Input Bias Current:	500 nA
Supply Voltage – Max:	30 V
Supply Voltage – Min:	10 V
Operating Supply Current:	2.5 mA
Output Current per Channel:	10 mA
CMRR – Common Mode Rejection Ratio:	90 dB
en – Input Voltage Noise Density:	8 nV/sqrt Hz
Package/Case:	PDIP-8
Mounting Style:	Through Hole
Shutdown:	No Shutdown
