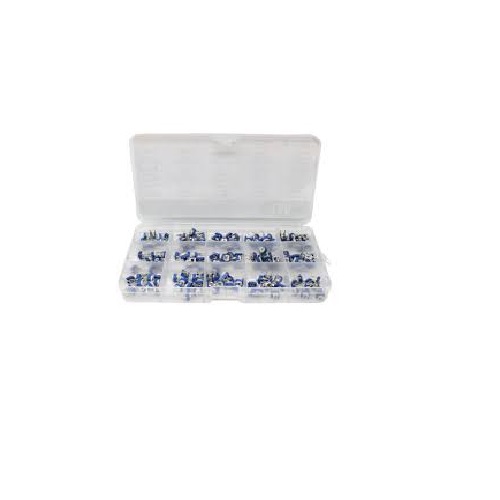

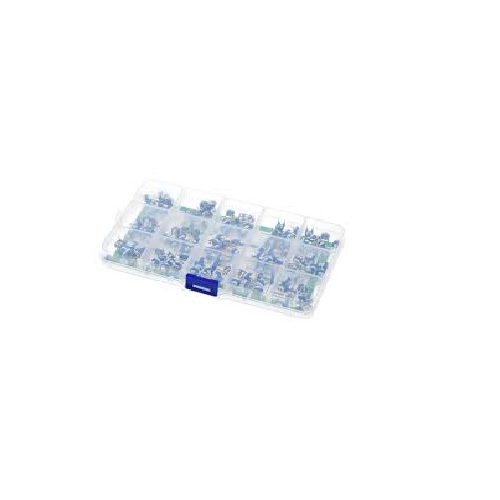

100pcs RM065 Blue and White Adjustable Resistor Kit

Description

100pcs RM065 Blue and White Adjustable Resistor Kit

his adjustable resistor has a wide range of uses and can be used in household appliances and electronic security industries.Such as televisions, induction cookers, rice cookers, etc.

The miniature blue and white vertical adjustable resistor is a plug-in adjustable resistor.

There are 2 types of plug-in adjustable resistors: vertical and horizontal. This product is a horizontal adjustable resistor.

Because the plastic cover color of some products is white and the plastic frame color is blue, they are also called blue-white adjustable resistors and blue-white horizontal resistors.

Rotation angle: 200°±20°

Rotation torque: 60~150g.cm

Stop strength:>500g.cm

Mechanical strength: The resistor can withstand 1kg pressure without breaking.

Resistance range (Ohms):100R-1M

Resistance deviation:±20%

Resistance change characteristics: B

Maximum operating voltage: 50V

Rating: 0.1W

Residual resistance: no more than 5% of the nominal resistance, no more than 30Ω at maximum

Rotation life: After 100 turns of no-load rotation, the maximum resistance change is ±15%

Load life: Load rated power for 3 hours, the maximum resistance change is ±5%
