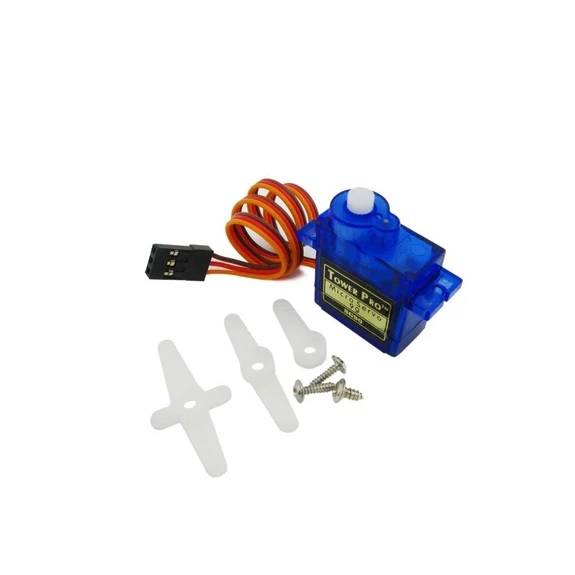

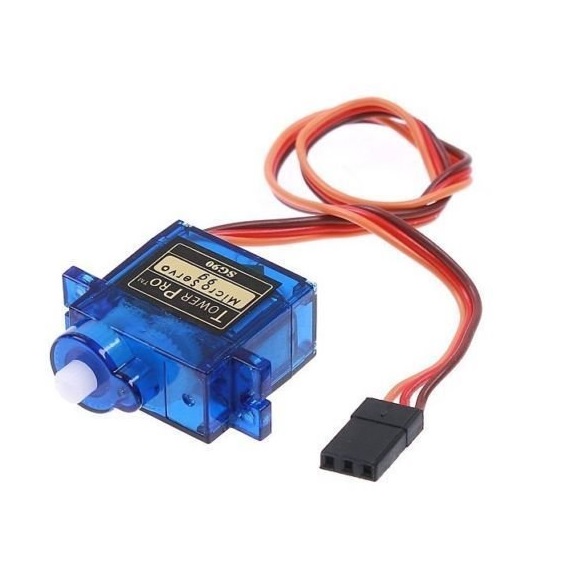

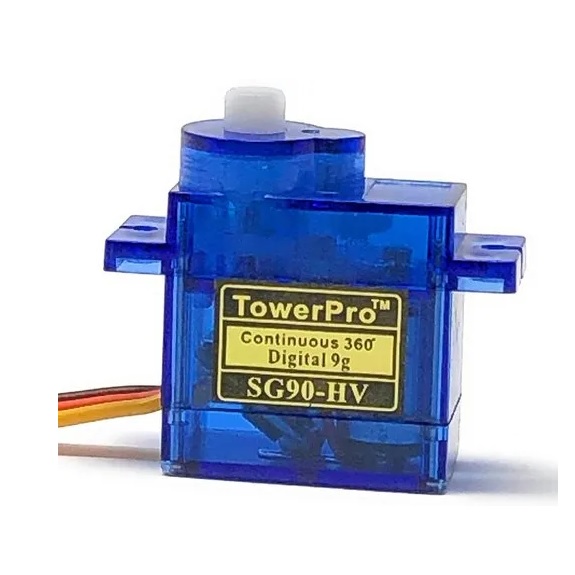

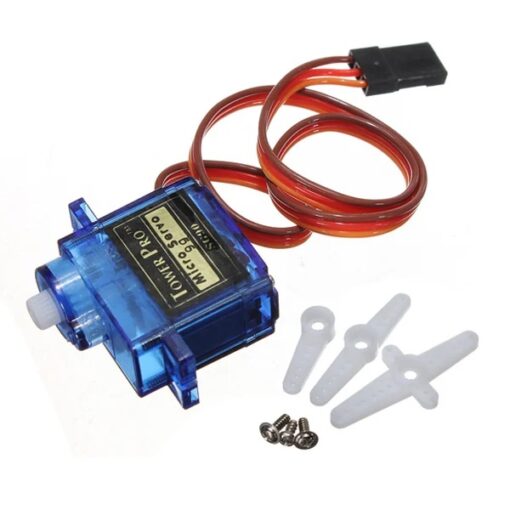

SG90 Continuous Rotation 360 Degree Servo Motor
₹120.00 (Price is Exclusive of GST)
Features :Â
- High resolution
- Accurate positioning
- Fast control response
- Constant torque throughout the servo travel range
- Excellent holding power
Description
SG90 360 Degree Servo Motor
SG90  Servo Motors are optimum-quality and affordable cost servos. They are suitable for a wide range of applications, including RC aircraft, automobiles, and robotics, Or just to have some fun with whatever crazy project you’re working on.
Wire Description:
- RED – Positive
- Brown – Negative
- Orange – Signal
Specification
Additional information
| Weight | 14 g |
|---|---|
| Dimensions | 8 × 6 × 4 cm |
| Operating Voltage (VDC) | 3.0 ~ 7.2 |
| Operating Speed @4.8V | 0.12sec/60° |
| Operating Speed @6.6V | 0.1sec/60° |
| Stall Torque @ 4.8V (Kg-Cm) | 1.2 |
| Operating Temperature (°C) | -30 to 60 |
| Dead Band Width ( μs) | 5 |
| Gear Type | Glass Fiber |
| Rotational Degree | 360º |
| Servo Plug | JR |
| Cable Length (cm) | Cable Length (cm) |
