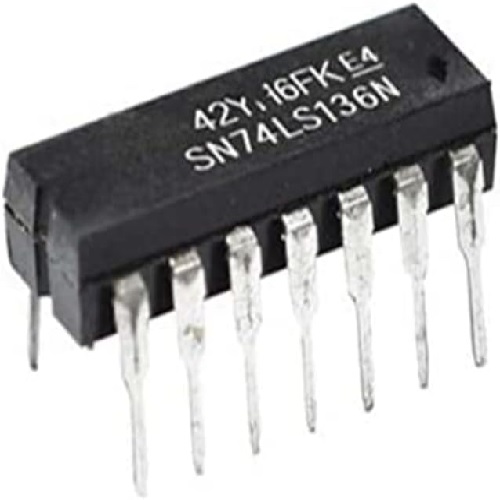

SN74LS136N GATE IC
₹120.00 (Price is Exclusive of GST)
SN74LS136N
XOR (Exclusive OR) IC 4 Channel Open Collector 14-PDIP
Description
SN74LS136N
IC GATE XOR 4CH 2-INP 14DIP
|
TYPE
|
DESCRIPTION
|
SELECT ALL
|
|---|---|---|
|
Category
|
Integrated Circuits (ICs)
Logic Gates and Inverters
|
|
|
Mfr
|
Texas Instruments
|
|
|
Series
|
74LS
|
|
|
Packaging
|
Tube
|
|
|
Part Status
|
Active
|
|
|
Logic Type
|
XOR (Exclusive OR)
|
|
|
Number of Circuits
|
4
|
|
|
Number of Inputs
|
2
|
|
|
Features
|
Open Collector
|
|
|
Voltage – Supply
|
4.75V ~ 5.25V
|
|
|
Current – Quiescent (Max)
|
10 mA
|
|
|
Current – Output High, Low
|
-, 8mA
|
|
|
Input Logic Level – Low
|
0.8V
|
|
|
Input Logic Level – High
|
2V
|
|
|
Max Propagation Delay @ V, Max CL
|
30ns @ 5V, 15pF
|
|
|
Operating Temperature
|
0°C ~ 70°C
|
|
|
Mounting Type
|
Through Hole
|
|
|
Supplier Device Package
|
14-PDIP
|
|
|
Package / Case
|
14-DIP (0.300″, 7.62mm)
|
|
|
Base Product Number
|
74LS136
|
|
