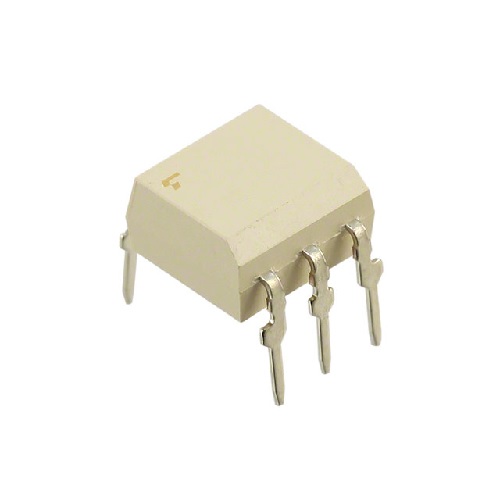

TLP350 Logic IC Output Optocoupler

₹70.00

TLP350

Features

  • Peak output current : IO = ±2.5A (max)

  • Guaranteed performance over temperature : −40 to 100°C

  • Supply current : ICC = 2 mA (max)

  • Power supply voltage : VCC = 15 to 30 V

  • Threshold input current : IFLH = 5 mA (max)

  • Switching time (tpLH/tpHL) : 500 ns (max)

  • Common mode transient immunity : 15 kV/μs

  • Isolation voltage : 3750 Vrms

  • Operating frequency 50 kHz

  • Storage temperature range Tstg -55 to 125 °C

  • Lead soldering temperature (1 0 s) Tsol 260 °C



1 in stock

SKU: OL-P-133 Category:

Description

TLP350

The MURP1560 is ultrafast diodes (trr <55ns) with soft recovery characteristics. They have a low forward voltage drop and are of planar, silicon nitride passivated, ion-implanted, epitaxial construction. These devices are intended for use as energy steering/clamping diodes and rectifiers in a variety of switching power supplies and other power switching applications. Their low stored charge and ultra fast recovery with soft recovery characteristics minimizes ringing and electrical noise in many power switching circuits, thus reducing power loss in the switching transistor. Formerly developmental type TA09905. Features:- Ultra fast with Soft Recovery<55ns Operating Temperature 175°C Reverse Voltage Up to 600V Avalanche Energy Rated Planar Construction Applications:- Switching Power Supply Power Switching Circuits General Purpose.
