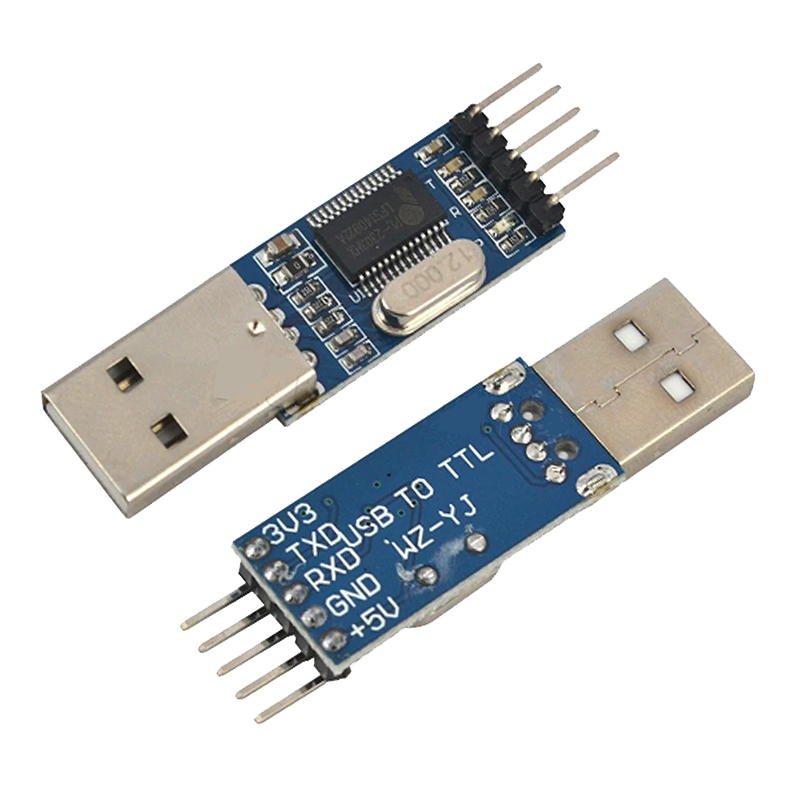

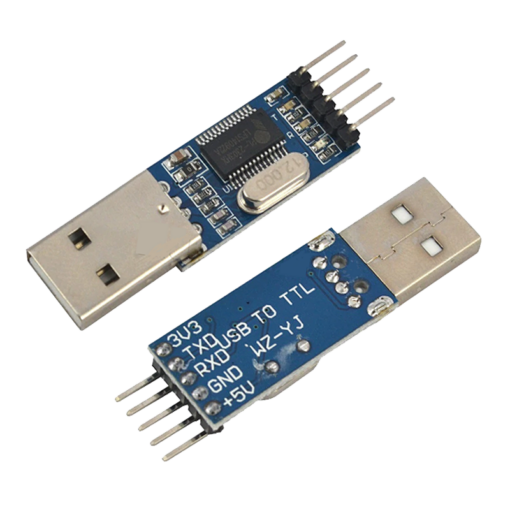

USB to RS232 TTL Converter Module Adapter Board
Features:
Single Chip USB to UART Data Converter
Integrated clock without external oscillator
Integrated USB transceiver does not require external resistors
On-Chip Power-On Reset Circuit . On-Chip Voltage Regulator 3.3V Output USB Function Controller
USB specification 2.0 full speed (12 Mbps)
USB abort status supported by the SUSPEND and RI pins
Description
USB to RS232 Module
USB to RS232 module based TTL provides the best and convenient way to connect your TTL Devices or demo board to your PC or Microcontroller via the USB port. This compact USB-UART module, leads to the interface, including 5V, 3.3V, TXD, RXD, GND, TXD, RXD which can be directly Connect the MCU serial port.
click here to know more !
Specification
Additional information
| Weight | 10 g |
|---|---|
| Dimensions | 2 × 1 × 3 cm |

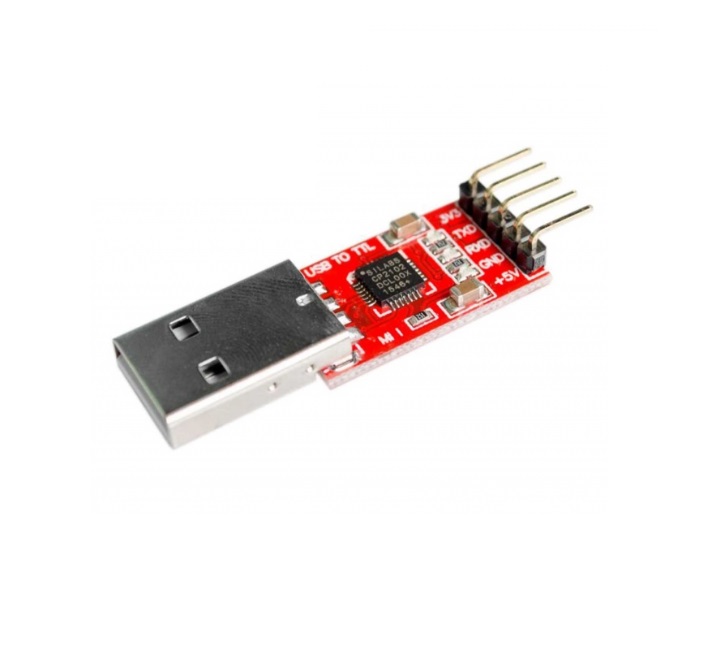

| Chip Type | PL2303HX, CP2102 |
| Operating Voltage (VDC) | 3 ~ 5 |
| Receiver Hysteresis | 300mV. |
| Operating Tempreture | -40°C ~ 85°C |
| Transceiver | 2 (1 TTL -> RS232 + 1 TTL <- RS232) |
| Operation | Full Duplex |
