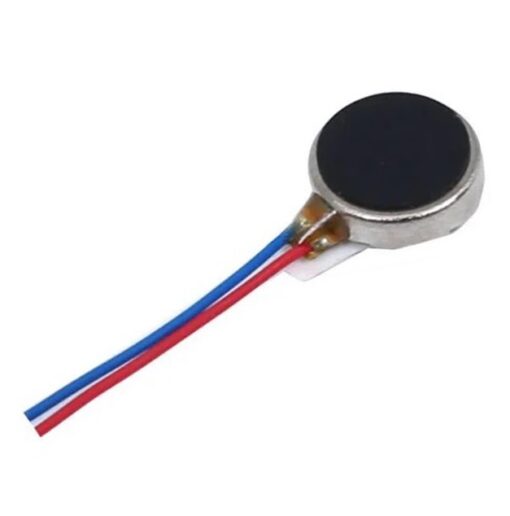

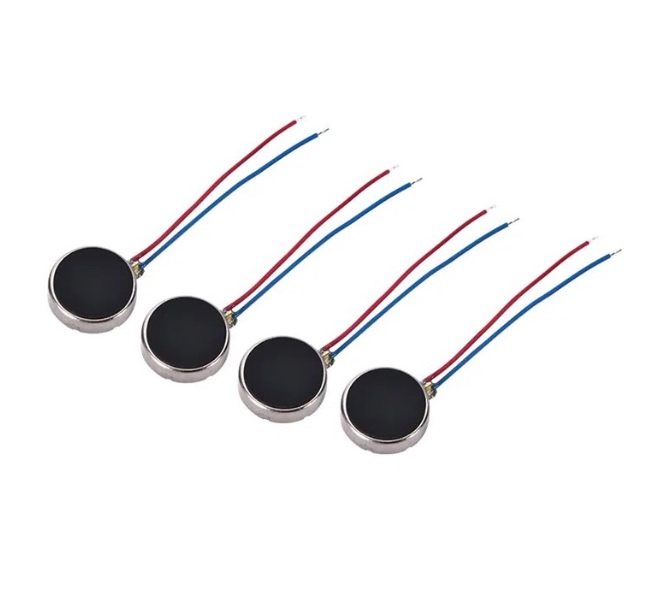

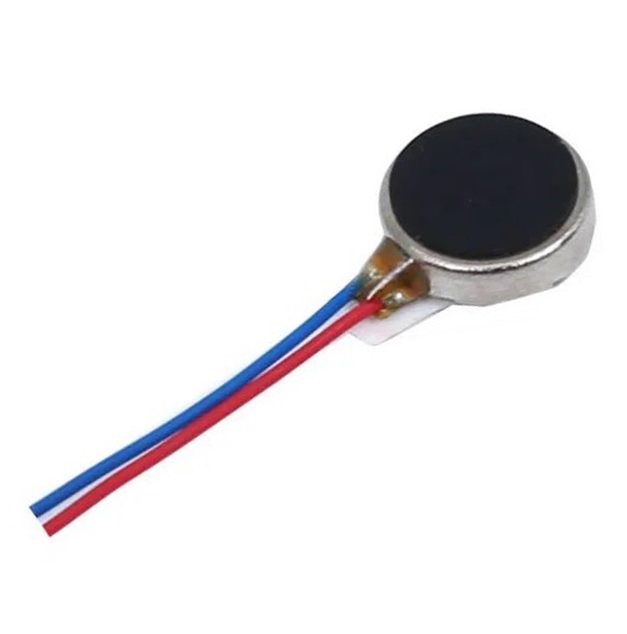

ERM Coin Vibration Motor, 8 mm Dia. ,2 mm Width
₹40.00 (excl. GST)
- Product: ERM Coin Vibration Motor
- Operating voltage: 2.5-3.3 VDC
- Starting Voltage: 2.3 mAx
- Rated Current: 80.0 Max
- Rated RPM.: 9000 Min
Description
Vibration Motor
The coin ERM type vibration motor is very popular in the wearables field. Since the coin motor is the thinnest motor in the world, and the thinnest we can do is 2.0mm, which is suitable for a thin and light smartwatch. You can click on 7-12mm flat motor for selection. These coin motors could be of different sizes and different contact modes for your choice.
Such as many kinds of connectors, spring contacts, and FPC. We can design a customized FPC for your application. If your device requires it, a sponge with different thicknesses or double adhesive tape also can be added.
Features:
- Small Compact Size
- Metal Body
- volt: 2.5V
- Speed 9000 RPM
- Powerful Motor
- Starting Voltage: 2.3 V DC
Package Includes:
1 x ERM Coin Vibration Motor
Specification
Additional information
| Item Type: | ERM Coin Type |
|---|---|
| Voltage Rating (V): | 3VDC |
| Current Rating (mA): | 80 |
| Rated Speed (RPM): | 13000, 13000 ± 2500 |
| Diameter (mm): | 8 |
| Rated Voltage (V): | 3 |
| Rated current (mA): | 80 |
| Thickness (mm): | 2 |
| Rotation | CW/CCW |
