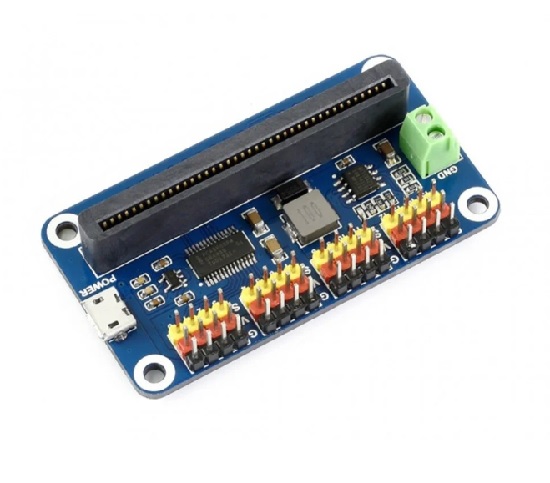

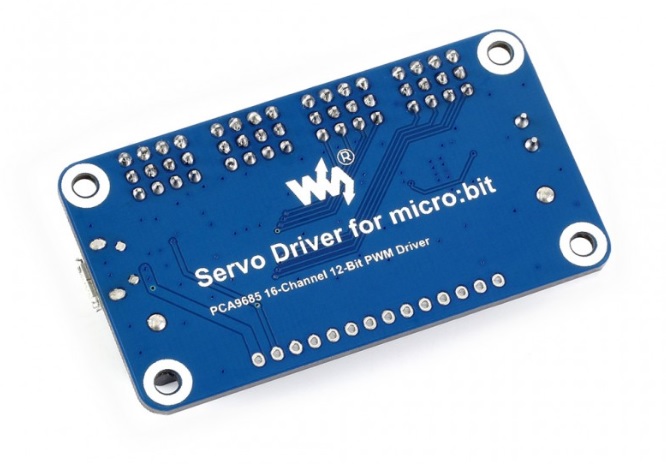

Waveshare 12-bit I2C 16-Channel Servo Driver for micro:bit

₹1,040.00

Waveshare 12-bit I2C

  1. Power supply: 5V (POWER connector) OR 6V~12V (VIN terminal)
  2. Servo voltage: 5V
  3. Logic voltage: 3.3V
  4. Driver: PCA9685
  5. Control interface: I2C
  6. Dimension: 65mm x 36mm
  7. Mounting hole size: 3.0mm
SKU: OL-P-151 Category:

Description

Waveshare 12-bit I2C

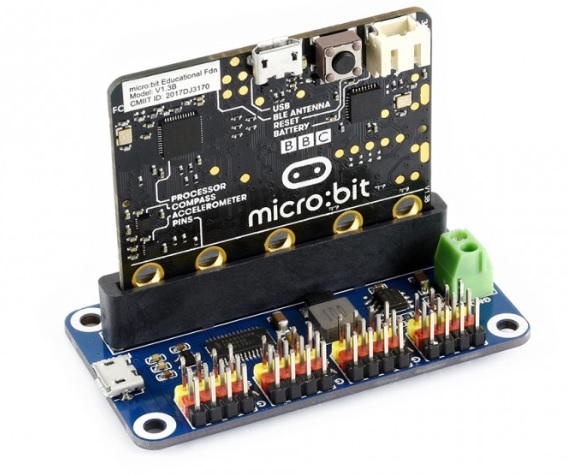

This is a Waveshare 12-bit I2C 16-Channel Servo Driver for micro: bit. Did you encounter the PWM output limit of micro: bit when trying to make a robotic arm or whatever robot that requires lots of servos? We quite understand that situation, even we got an excellent solution. This handy servo driver breakout would be your ideal choice.

Features:

  1. micro: bit edge connector, directly pluggable
  2. I2C controlled, using only 2 pins
  3. Up to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales)
  4. Integrates 5V regulator, up to 3A output current, can be powered from the battery through VIN terminal
  5. Standard servo interface supports commonly used servo such as SG90, MG90S, MG996R, etc.
  6. Reserved I2C control pins, allows working with other control boards
  7. Comes with development resources and manual (micro: bit graphical examples like Bluetooth/2.4G wireless remote control)
