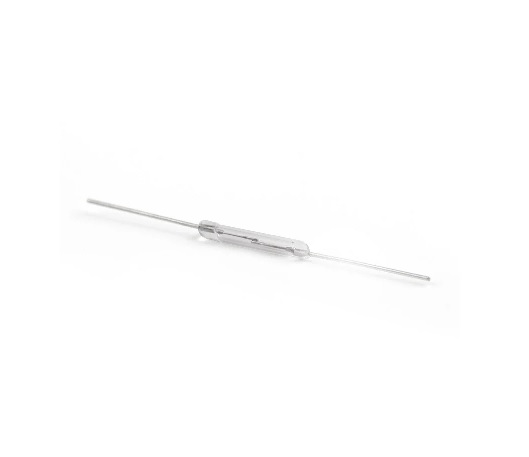

White Reed Switch Y213 2*14mm Normal Open
₹16.79 (excl. GST)
Features :
- Small Module.
- Very easy to use.
- Direct connection in the circuit.
Description
White Reed Switch
This is White Reed Switch 2 x 14 mm Switch with Normally Open Contact.
When the device is exposed to a magnetic field, the two ferrous pins inside the switch pull together and the switch closes. When the magnetic field is removed, The Reed Switch separates and the switch opens. This makes for a great non-contact switch. This switch can carry up to 1.2A.
This small and easy to use module can be used in a variety of environmental conditions, it operates very reliably in the -50°C to +140°C temperature range.
Features :
- Small Module.
- Very easy to use.
- Direct connection in the circuit.
Specification-
| Glass Length | 14mm |
| Glass Diameter | 2mm |
| Total Length | 45mm |
| Max. Switching Voltage | 300 VDC |
| Min. Breakdown Voltage | 150 VDC |
| Max. Contact Rating | 10W |
| Max. Switching Current | 0.55 A |
| Max. Operate time | 0.45 ms |
| Bounce time | 0.25 ms |
| Max. Release time | 0.35 ms |
| Resonant Frequency | 5000 HZ |
| Max. Operating Frequency | 400 HZ |
Specification
Additional information
| Weight | 0.01 g |
|---|---|
| Dimensions | 8 × 5 cm |
| Glass Length | 14mm |
| Glass Diameter | 2mm |
| Max. Switching Voltage | 300 VDC |
| Min. Breakdown Voltage | 150 VDC |
| Max. Contact Rating | 10W |
| Max. Switching Current | 0.55 A |
| Max. Operate time | 0.45 ms |
