XT60 Male Connectors-2pcs
₹40.00
Specifications and Features:
- Mechanical mounting for cable
- Electrical mounting soldered
- Contact plating Gold flash
Description

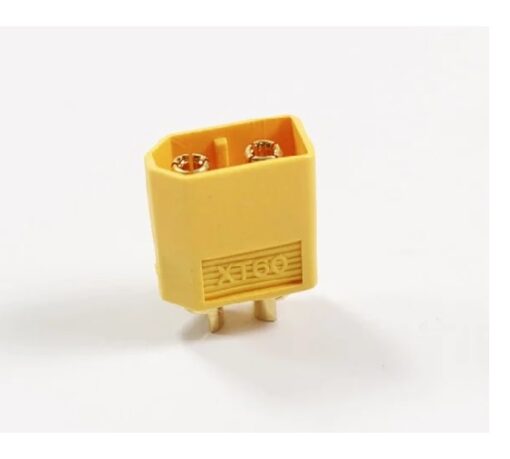

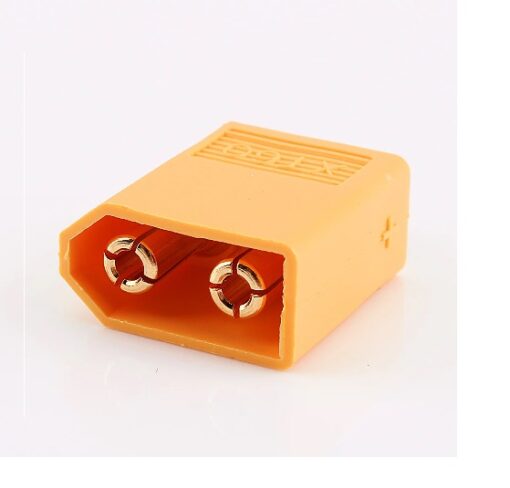

XT60 Male Connector
This is an Excellent W.S. Deans T-connector replacements. Made from high-temp Nylon and gold plated spring connectors, both included in the injection mold at the time when forming the connector.
The XT60 ensures a solid high-amp connection, perfect for applications up to and beyond 65A constant. XT60, Designed by Amass to be more reliable and a better quality connection than Deans’s T-Connectors.
There is no patent on the XT60 connector.
IMPORTANT
These are not cheap copied XT60 plugs. These original Nylon XT60 plugs can handle over 60A current for extended periods without exceeding 80DegC thanks to their better contact surface area. The plug is also less likely to deform or melt in comparison to copied non-Nylon XT60 plugs.
These are not cheap copied XT60 plugs. These original Nylon XT60 plugs can handle over 60A current for extended periods without exceeding 80DegC thanks to their better contact surface area. The plug is also less likely to deform or melt in comparison to copied non-Nylon XT60 plugs.
Specification
Additional information
| Weight | 8 g |
|---|---|
| Dimensions | 4 × 4 × 1 cm |
| Gender | Male |
| Rated Operating Voltage (VDC) | 500 |
| Current Handling Capacity (A) | 60 |
| Connector Type | XT60 |
| Contact Material | Brass |
| Operating Temperature (°C) | -20 to 120 |
| Allowed Wire Size (AWG) | 14 ~ 12 |
| Color | Yellow |
