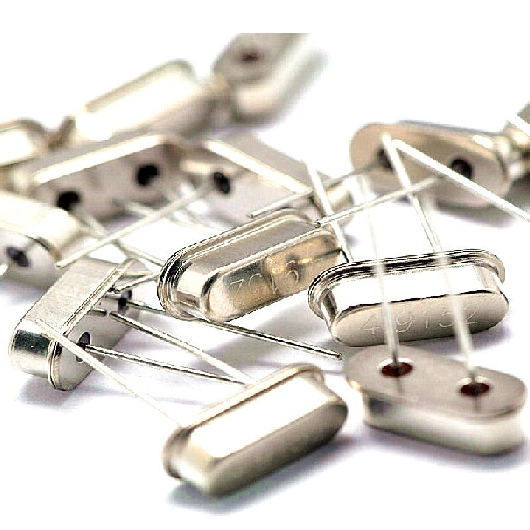

Quartz Crystal Oscillator DIP Type
₹8.00 (Price is Exclusive of GST)
- Frequency: 24.576MHz; Frequency Tolerance : ±20ppm; Type: HC-49S
- Mounting Type: DIP; Number of Pins: 2; Load Capacitance: 20pF; Equivalent Resistance: 30 OHM
- Body Size: 11 x 4.65 x 3.6mm / 0.43″ x 0.18″ x 0.14″ (L*W*H); Lead Pitch: 4.88mm / 0.19″
- DIP Quartz Crystal Oscillators for RISC & CISC Microcontrollers
- Widely used in TV, electronics, PC cards, electronical meter, DVD, MP3, MP4, etc
Quartz Crystal Oscillator
A Quartz Crystal Oscillator is an electronic oscillator circuit that uses the mechanical resonance of a vibrating crystal of piezoelectric material to create an electrical signal with a precise frequency.
A crystal oscillator is an electronic oscillator circuit that uses the mechanical resonance of a vibrating crystal of piezoelectric material to create an electrical signal with a precise frequency. Quartz crystals are manufactured for frequencies from a few tens of kilohertz to hundreds of megahertz.
crystal oscillators are used in the microprocessors and microcontrollers for providing the clock signals. This crystal oscillator is used to generate clock pulses required for the synchronization of all the internal operations.
Additional information
| Weight | 5 g |
|---|---|
| Dimensions | 10 × 8 × 6 cm |
| Value | 4 MHz, 8 MHz, 12 MHz, 16 MHz |
| Frequency: | 24.576MHz |
| Frequency Tolerance : | ±20ppm |
| Load Capacitance: | 20pF |
